Home > Products > Household AC contactor > Aissmy 1NO household AC contactor 63a 16a 20a 25a

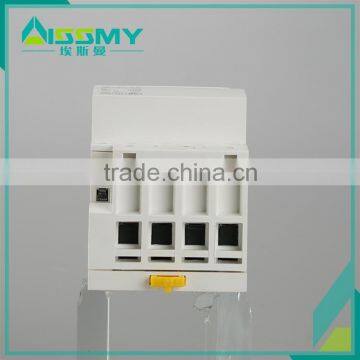

Aissmy 1NO household AC contactor 63a 16a 20a 25a
- 1000000 Piece / Pieces per Month
- shanghai or ningbo
- T/T Credit Card
You May Like
-
Electrical Equipment Supplies 16A 25A 40A 63A Contactor
-
CT-25A 50Hz/60Hz Household Contactor Single Pole Switch
-
Easy Installation Din Rail 2NO 2NC AC DC Contactor
-
QCX2-12 Series Magnetic Starter Low voltage Starter
-
QCX2-12A telemecanique electrical Magnetic starter
-
QCX2-09 Electric Magnetic Motor Starter 380V
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aissmy | |
| Model Number | ct-16a | Electricity Type | AC | |
| Number of Pole | Other, 1\2\3\4 | Phase | Other, 1\2\3\4 | |
| Main Circuit Rating Voltage | Other, 250v 400v | Main Circuit Rating Current | Other, 63a |
Product Description
Household ACcontactor
The contactor is mainly used in the power system of AC 50HZz/60Hz,rated voltage up to 400v,rated working current up to 100A,under the AC-1,AC-7a using categories,for long distance switch and control circuit.
Main technical parameters
| Model | 16A | 20A | 25A | 40A | 63A | 100A | ||
| In(A) Rated current In(A) | AC-7a | 16 | 20 | 25 | 40 | 63 | 100 | |
| AC-7b | 6 | 7 | 8.5 | 15 | 20 | 30 | ||
| Prescribed heating current Ith(A) | 25 | 25 | 25 | 63 | 63 | 100 | ||
| Rated insulation voltage Ui(V) | 500 | |||||||
| Rated operating voltage Ue(V) | 250V(1P 2P) 400V(3P 4P) | |||||||
| Number of main contacts | 1P | 1NO 1NC | ||||||
| 2P | 1NO1NC 2NO2NC | |||||||
| 3P | 3NO 3NC | |||||||
| 4P | 2NO2NC 3NO1NC 4NO 4NC | |||||||
| Control power (KW) | AC-7a | 230V | 3.5 | 4.5 | 5.5 | 9 | 14 | 22 |
| 400V | 6.5 | 8 | 10 | 16 | 25 | 38 | ||
| AC-7b | 230V | 1.4 | 1.6 | 2 | 3.5 | 4.5 | 5.5 | |
| 400V | 2.4 | 2.4 | 3.4 | 6 | 8 | 11 | ||
| Electrical life (times) | 10*10000 | |||||||
| Mechanical life (times) | 100*10000 | |||||||
| Maximum switching frequency/1h | 30 | |||||||
| Rated control supply voltage Us (V) | AC 24/50Hz AC 230/50Hz | |||||||
Product display
Company Profile:
Located in the state-level high -tech pioneering pack in Shanxi Province, Assimy is a company which designs and produces high and low voltage electrical equipments and accessories. In order to expand business scope, Assimy set up a branch company in Liushi Wenzhou.
Assimy has a wide range of electric accessories include Magnetic contactor, Household contactor, CJ20, CJX2, GMC, Air conditioning contactor,DZ47-63,DZ47LE circuit breaker, Moulded case circuit breaker, Dual power automatic transfer switch, Isolating switch, Magnetic starter, Self loading type overvoltage and under voltage protection device, Power supply of the switch, Fuse, Surge protective device, etc.
