Home > Products > Household AC contactor > Easy Installation Din Rail 2NO 2NC AC DC Contactor

Easy Installation Din Rail 2NO 2NC AC DC Contactor

FOB Price

US$ 2 - 10 / Piece

1 Piece(Min. Order)

Port Shanghai or Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	OEM/Aissmy
Model Number	CT4022 2NO2NC	Electricity Type	AC
Number of Pole	4	Phase	3
Main Circuit Rating Voltage	Other, 380V	Main Circuit Rating Current	Other, 40A

Product Description

Easy Installation Din Rail 2NO 2NC AC DC Contactor

Product Description

(16A/20A/25A/40A/63A/100A For you to choose)

CT contactors can be used to remote control applications in alternative networks:

1. lighting, heating, ventilation, roller blinds, sanitary hot water

2. mechanical ventilation system,etc.

3. load-shedding of non-priority circuits

CT contactors are available in two versions:
Contactors without manually-operated
Contactors with manually-operated

The breadth of the CT contactor range satisfies most application cases.
CT contactors can be combined with auxiliary control, protection and indication functions.

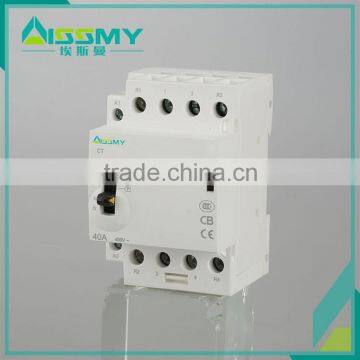

Photo Show:

Technical Parameter:

Power circuit
Voltage rating (Ue) 1P/2P	250V AC
3P/4P	400V AC
Frequency	50Hz or 60Hz
Endurance (O-C)
Electrical	100,000 cycles
Maximum number of switching operation a day	100
Additional charateristics
Insulation voltage (Ui)	500V AC
Pollution degree	2
Rated impulse withstand voltage (Uimp)	2.5KV (4KV for 12/24/48V AC)
Degree of protection (IEC 60529)	Device only IP20
Degree of protection (IEC 60529)	Device in modular enclosure IP40
Operating temperature	-5 ℃to+60 ℃
Storage temperature	-40 ℃to+70 ℃
Tropicalization (IEC 60068-1)	Treatment 2 (relative humidity 95% at 55℃)
ELSV compliance (Extra Low Safety Voltage) for 12/24/48vac versions
The product control conforms to the SELV (safety extra low voltage) requirements

Note: In the case of contactor mounting in a enclosure for which the interior temperature is in range between 50 ℃ and 60 ℃, it is necessary to use a spacer, between each contactor.

Dimensions(mm):
