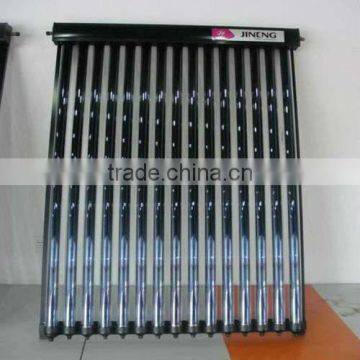

High Efficiency Vacuum Tube Solar Collector
- 100 Set / Sets per Month
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Type | Evacuated Tube | Pressure | Pressurized | |
| Circulation Type | Other, Closed-loop | Heating System | Thermosyphon (Passive) | |
| Connection Type | Split | Installation | Other, freestanding or wall mounted | |
| Housing Material | Other, aluminum alloy | Certification | CE, Other, CE, EU Solar Keymark | |
| Capacity | 300 | Place of Origin | Zhejiang, China | |
| Brand Name | JINENG | Model Number | JNSC |
Product Description
High Efficiency Vacuum Tube Solar Collector
1. Working Principle
Heat pipe series solar collector is always connected with existing heating supply device. The selective coating inside tubes converts solar energy into heat energy and transfers heat to heat pipe via aluminum feed. The liquid (anti-freezing liquid) in the heat pipe changes into vapor which rises to the condensers. This transference of heat in the liquid creates a continuous circulation as long as the collector is heated by the sun.
2. Specification:
Mould: JNSC
This model solar collector has a good advantage of multifunctional frame with different angels. It can adjust from up and down. It is one of the new type of headbox with fashionable design.It can be amounted on roof/flat foof/wall mounting in vertical position.
More details:
Headbox: 2.0mm aluminum alloy
Frame: 2.0mm aluminum alloy
Insulation: 50mm rock wool
Collector: with 14mm/20mm/24mm header heat pipe three target tubes
Manifold connection: 3/4'inch
Pressure bearing: 0.6MPa
3. Producing Process
Working pinciple:
4. Packing
| Model | Absorber area (m2) | L/W/H (mm) | Measurement(m3) | Loading quantity | ||
| 20'GP | 40'GP | 40'HG | ||||
| 58-1800-10 | 0.87 | 2020× 88 ×136 | 0.185 | 154 | 311 | 368 |
| 58-1800-12 | 1.04 | 2020×103 ×136 | 0.2 | 143 | 288 | 340 |
| 58-1800-15 | 1.30 | 2020×1268×136 | 0.234 | 122 | 246 | 291 |
| 58-1800-18 | 1.56 | 2020×1493×136 | 0.27 | 106 | 213 | 252 |
| 58-1800-20 | 1.73 | 2020×1643×136 | 0.3 | 95 | 192 | 227 |
| 58-1800-24 | 2.08 | 2020×1960×136 | 0.34 | 84 | 169 | 200 |
| 58-1800-30 | 2.6 | 2020×2380×136 | 0.423 | 67 | 136 | 161 |
5. Whole system
