High Heat Efficiency Pressure Solar Collector
- shanghai
- T/T Credit Card
You May Like
-
30 Tubes High Efficiency Vacuum Tube Heat Pipe Solar Collector 300L Heating Ssytem Quality Choice
-
58mm-1800mm-15 Solar Power Collector
-
Neueste Hoher Druck Solarkollektor KEYMAR APPROVED
-
Newest and Best Heat Efficiency Solar Collector
-
Solar Keymark Vacuum Tube Solar Thermal Collector
-
Solar Keymark Flat Plate Solar Collector
Product Details
| Place of Origin | Zhejiang, China | Brand Name | JINENG | |
| Model Number | JNSC | Type | Pressurized | |
| Application | Water Heater | Pipe Material | Glass |
Product Description

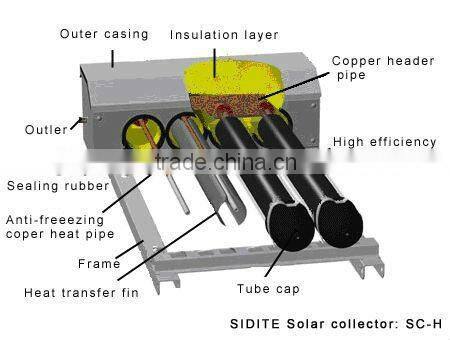

Reliable, efficient, twin-glass solar tubes .
1. Copper heat pipes for rapid heat transfer .
2. Easy plug-in installation.
3. Maintenance Free.
4. Suitable for mains pressure water (up to 8 bar/116psi) .
5. Corrosion resistant silver brazed copper header.
6. All stainless steel frame (304 2B grade SS)
7. Powder coated (black, brown or silver) aluminum casing.
8. Stable solar conversion throughout the day (tubes passively track the sun).
9. The perfect solar collector for domestic solar water heater systems.
10. Ideal for commercial solar water heating applications.

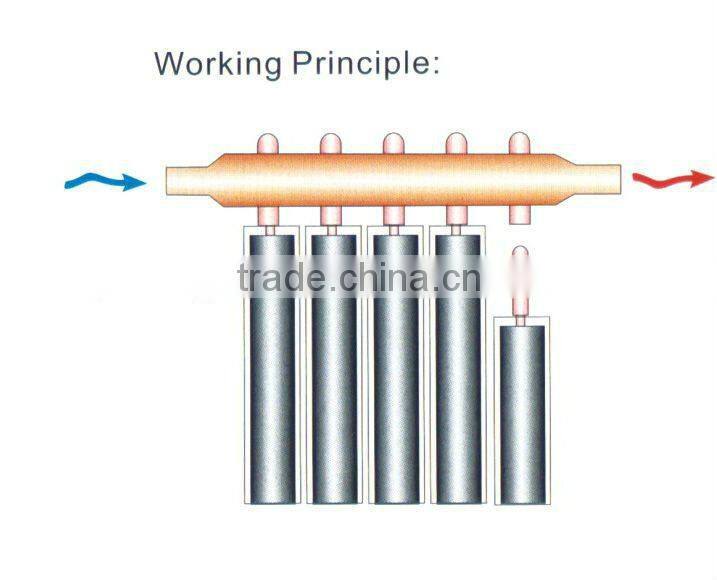

How solar collector with heat pipe works:
1) Solar absorption: Solar radiation is absorbed by the solar tubes and converted into heat.

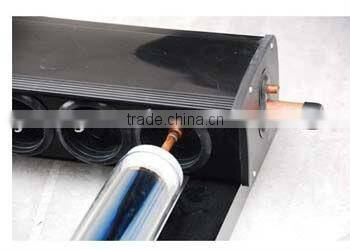

2) Solar heat transfer: Heat pipes conduct the heat from within the solar tube up to the header pipe
3) Solar energy storage: Water is circulated through the header, via intermittent pump cycling.
| Heat pipe solar collector technical specification: | |||||
| Type: | Vacuum Tube Solar Collector with Heat Pipe | ||||
| Vacuum Tube: | Borosilicate 3.3, ALN-SS/CU Coated Layer | ||||
| Tube Dimension | Inner Tube | 47mm | |||
| Outer Tube | 58mm | ||||
| Length | 1800mm | ||||
| Tube Qty.: | 15/18/20/24/30 /36tubes | ||||

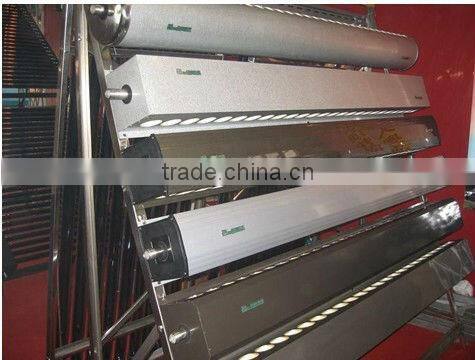

| Manifold: | Aluminum | ||||
| Frame: | Aluminum | ||||
| Vacuum Tightness | 5.0*10-3 Pa | ||||
| Heat Insulation Layer: | Rock Wool | ||||

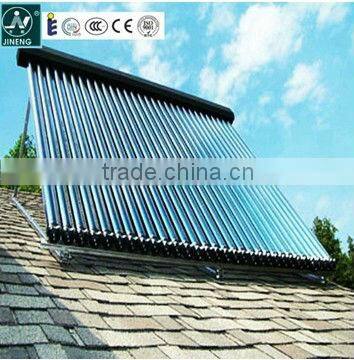

| Collector Mounting: | Flat Roof/Sloping Roof | ||||
| Heat preservation: | 72 hours | ||||
| Hail Resistance: | 25mm | ||||
| Cold Resistence | -40°C | ||||
| Hot Temp Resistence | 260°C | ||||
| Life | 15 Years | ||||
| Certificate: | CE, Solar Keymark, EN12975-1/2, CCC, ISO9001 | ||||
| Appliance: | Domestic Hot Water Heating, Pool Heating, | ||||
| Radiant Infloor Heating, Air Heating. | |||||
