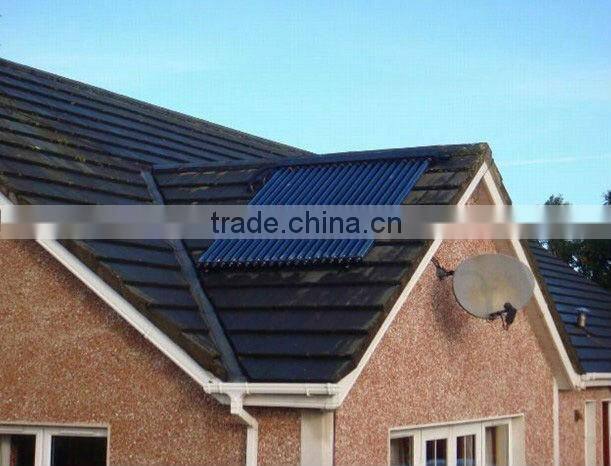

Roof Mounted High Pressure Solar Collectors

 Model:JNSC-k

1. How solar hot water collector works:

1) Solar absorption: Solar radiation is absorbed by the solar tubes and converted into heat.
2) Solar heat transfer: Heat pipes conduct the heat from within the solar tube up to the header pipe.
3) Solar energy storage: Water is circulated through the header, via intermittent pump cycling.

2. How we producing:

3. Technical Informations:

4. More specification:

Germany TUV approved with SOLAR KEYMARK
Can be amounted on roof/flat foof/wall mounting in vertical position
Manifold (interior) material: Red cop Germany TUV approved with SOLAR KEYMARK
Can be amounted on roof/flat foof/wall mounting in vertical position
Manifold (interior) material: Red copper
Manifold (exterior) material: aluminum alloy
Vacuum tube: 58×1800mm three target tube
Insulation: 25mm/50mm rock wool per
Manifold (exterior) material: aluminum alloy
Vacuum tube: 58×1800mm three target tube
Insulation: 25mm/50mm rock wool

5. Attention:

(1)Clearance of remains and sundries in water tank should be done ahead of installation in the purpose of avoiding walling up in or out vents, which may make water tank split up or deflated.

 ( 2) Do not load water when it is suuny. Better to load water at night or early in the morning expecially for the new unit. As the temperature of vacuum tube can reach 270°C at the highest. When water flowing at this time, vacuum tubes will be broken.

 (3) When loading water at a high water level, do not turn on the inlet valve openly but let water flow slowly to the tank, or the inner tank will be broken due to the expansion of high pressure.

 (4) It is inappropriate to load water at a low water level, which will result in hot water in the tank reflowing to water pipe.

(5) Before having a bath, it is necessary to avoid scalding with hand to testing the temperature of water.

 ( 6) If electrical heater is installed, it should be cut off when you shower.

  6. Service

1. We offer customers 5 years for whole solar systems;
2. Carton design for customs is free offered when goods sent by container
3. When you have any questions regarding our products, feel free to contact us. We will be very glad to service for you.
4. 1% extra vacuum tubes, slicone rings will be sent for free.
