API 16A 16C Choke Manifold Control Console
- Tianjin Qingdao Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | China | Brand Name | SINOTAI | |
| Certification | API | Use | Well Drilling |
standard export package
Product Description
Choke manifold control console
1.Usage
Choke manifold control console as a control assembly in hydraulic choke manifold, can remote control the open/close of hydraulic choke valve for a long distance and the control panel can indicate the stand-pipe pressure,casing pressure and the opening / closing condition of hydraulic choke valve as well as the pulse number andfrequency of the mud pump if pump-pulse counter equipped, which can keep the pressure under well and is anecessary device to control kick and blowout and perform the pressure control technology in oil / gas well.

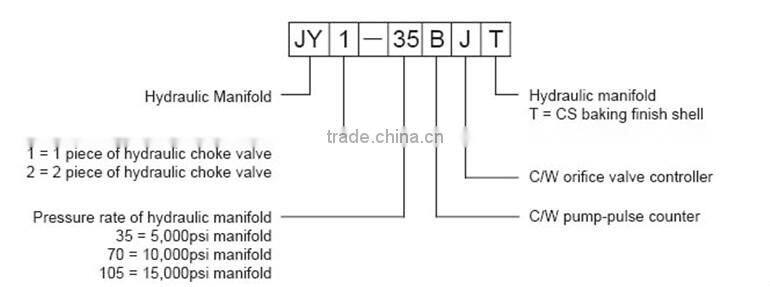

2.Illustration of type
3.Technology Parameter
(1) Gas-suorce Pressure: 100psi
(2) Ambient Temperature: -20℃ ~ +60℃
(3) Working Pressure: 500psi
(4) Quick Nipple in gas line: M16 x 1.5
(5) Quick Nipple in oil line: M22 x 1.5
(6) Hydraulic oil: anti-cryogenic hydraulic oil
(7) Length x Width x High: 960 x 600 x 1300
(8) Weight: 300Kg

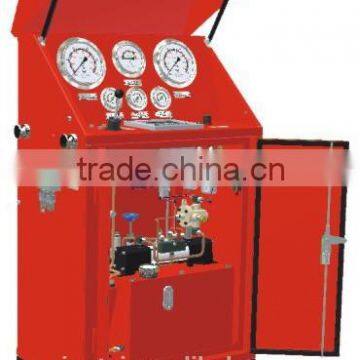

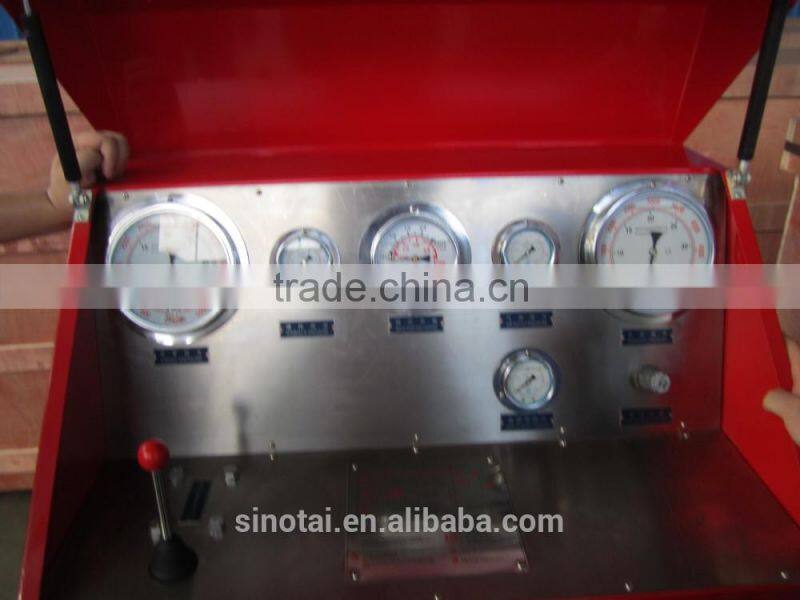

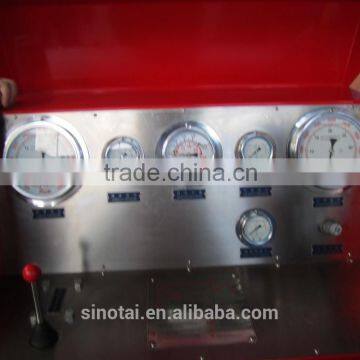

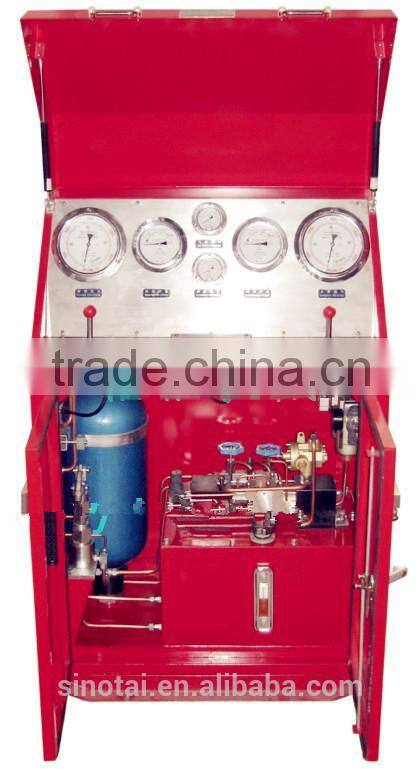

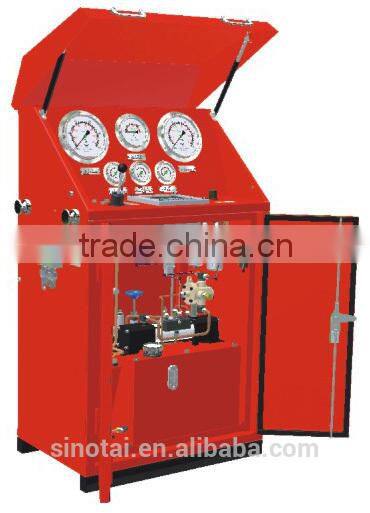

4.Product shows
