Safety and Reliable API Standard Rotating/rotational BOP for Oil Drilling Well Control
- Shanghai Tianjin
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | SINOTAI | |
| Model Number | WDXK | Type | Bop | |
| Machine Type | Drilling Equipment | Certification | API | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Well Drilling |
standard export package
Product Description

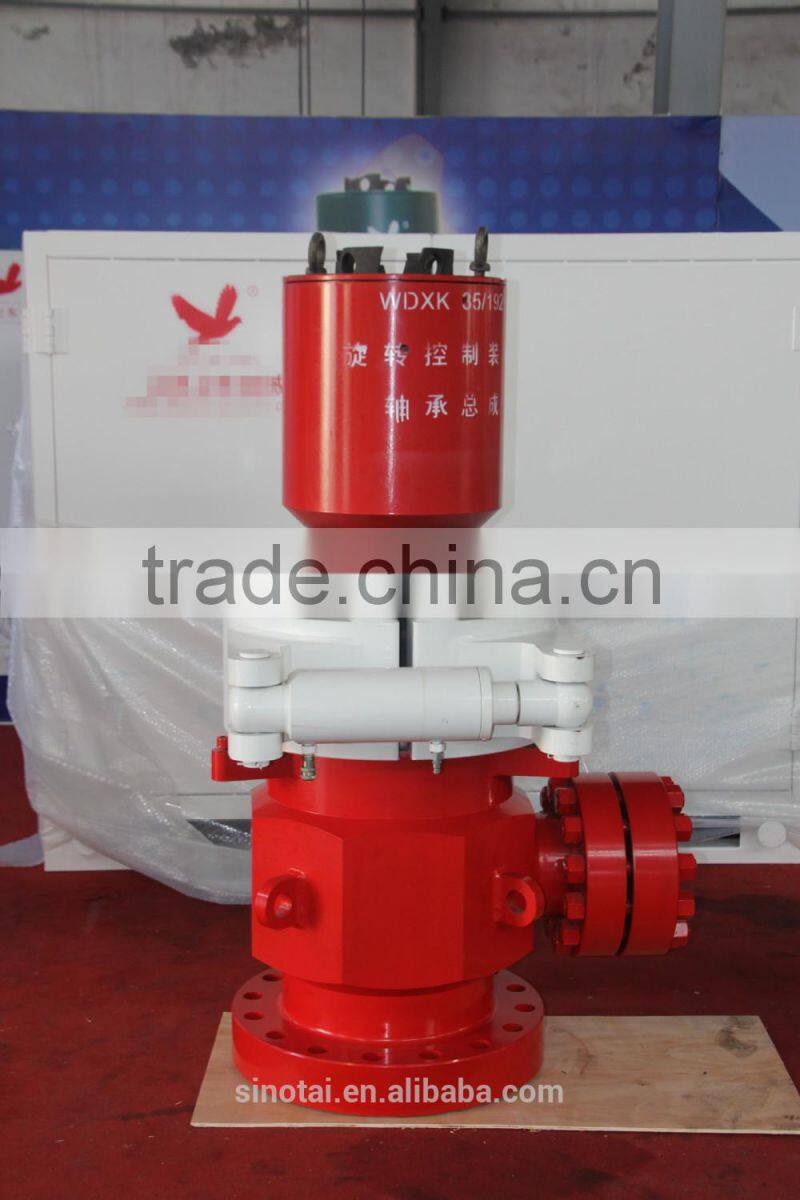

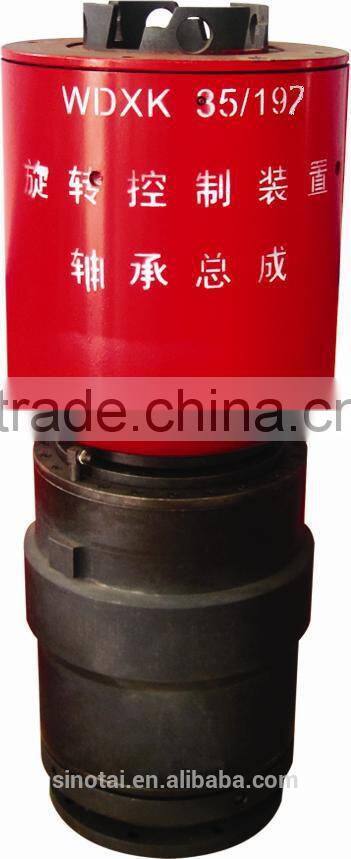

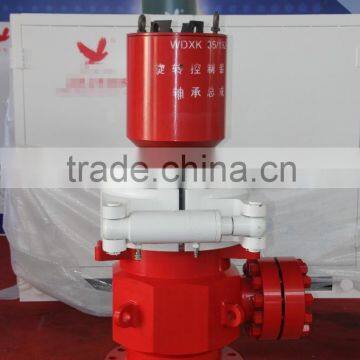

API standard rotating/rotational BOP
Usage and application
Always be positioned at the top of the stack above annular or ram preventer. It is used to seal rotating drill pipes and pass flow. Be assembled with hydraulic BOP, drill pipe check valve, gas seperator and u kill well trip pressurization device, it can finish drilling and unkill well drilling safely. The rotating BOP play important role in releasing low pressure oil gas zone, leak preventive drilling, Pneumatic drilling, unkill drilling and other special operation.
XK35/197—17.5/35 rotating BOP application range:
Drill pipe size: 140mm(5—1/2in),89mm (3—1/2in ),73mm(2—7/8in)drill pipe and correpondingly kelly
Medium: air, foam, and all kinds of drilling fluid
Rotating BOP center pipe for dill pipe size: 179.4mm(7—1/16in)
Rotary table OD: ≥440mm(17.5in)
Rubber core identity: 80 EPDM 1210 BD
XK rotary BOP main technical parameters:
Type | XK35/197-17.5/35 |
Overal OD. | 346mm(13 5/8in) |
Down flange connection | 346mm(13 5/8in)—35Mpa 6BX flange |
Side OD. | 180mm(7 1/16”) |
Side outlet connection | 180mm(7 1/16”)—35MPa 6B flange |
Side inlet connection | 52mm(2 1/16)—35MPa 6B flange |
Center pipe OD. | 197mm |
Working pressure | Max. working pressure 17.5MPa |
Max. Static presssure 35MPa | |
Max. Rotary speed | 100r / min |
Drill pipe OD. | 6in KELLY+5 1/2in drill pipe,4 1/4in kelly+3 1/2in drill pipe, 3 1/2in kelly+3 1/2in drill pipe, 3in kelly+2 7/8in drill pipe |
Medium | air, foam, and all kinds of drilling fluid |
Overall size | Height :1750mm Rotaryassembly OD:460mm Shell height:1000mm |
IF THE TYPE, SIZE AND SPECIAL REQUIREMENTS OF PRODUCTS ARE NOT COVERED HEREIN, PLEASE DON'T HESITATE TO CONTACT US, AND WE WILL REPLY PROMPTLY.
