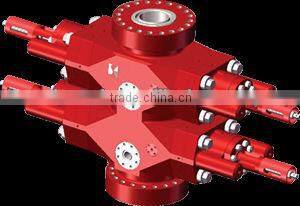

S-Shaped Ram BOP for Oil Drilling Well Control
- Tianjin Qingdao
- T/T
You May Like
-
Annular BOP (13-5/8''*50000psi) for Oil Well Control
-
API 6A Wellhead and Christmas Tree Equipment
-
YZB Series of Hydraulic Power Units Used With Hydraulic Power Tong
-
YZB Series of Hydraulic Power Station Used With Hydraulic Power Tong
-
YZBF-120LD Air-cooled Hydraulic Power Unit Used With Hydraulic Power Tong
-
YZBF-120LD Air-cooled Hydraulic Powerstation
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Certification | API | Warranty | one year | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
Structure Features:
Body and side door are made of alloy steel.
Use seal rings assembly to improve sealing of side door.
Use floating type ram. Front ram rubber is separated
from top ram rubber, making it more reliable in sealing
and easier to change.
Use buried oil way inside body. Loading hinge is separated from hydraulic hinge.
Compact hinge structure makes it easy to assemble and disassemble.
Use arc-shaped body chamber with four round corners as transition section
to reduce stress peak value whenever bearing the pressure.
Ram cavity can be fitted with ram assembly of same type BOP made abroad.
Flange grooves are stainless steel lined.
Type S BOP Operation data
Drift diameter/pressure | Oil quantity for opening the ram(L/set) | Oil quantity for closing the ram(L/set) | Locking mode | Piston diameter(mm) | Remarks |
7 1/16” / 5000psi | 1.6 | 1.9 | Manual | 150 | |
7 1/16” / 10000psi | 2.22 | 2.5 | Manual | 180 | |
7 1/16” / 15000psi | 7.48 | 85 | Manual | 280 | Allowed to be fitted with a shear ram |
9” /3000psi | 1.55 | 1.9 | Manual | 140 | |
9” / 5000psi | 4.7 | 5.3 | Manual | 220 | |
11” / 3000psi | 2.68 | 3.22 | Manual | 165 | |
11” / 5000psi | 5.2 | 5.45 | Manual | 220 | |
11” / 5000psi | 14.6 | 16.3 | Manual | 355 | Allowed to be fitted with a shear ram |
11” /10000psi | 6.6 | 7.4 | Manual | 250 | |
11” / 15000psi | 14.4 | 16.7 | Manual | 355 | Allowed to be fitted with a shear ram |
13 5/8” /5000psi | 7.4 | 8.3 | Manual | 250 | Allowed to be fitted with a shear ram |
13 5/8” /10000psi | 19.9 | 20 | Manual | 355 | Allowed to be fitted with a shear ram |
13 5/8” / 15000psi | 17.44 | 19 | Manual | 355 | Allowed to be fitted with a shear ram |
20 3/4” / 3000psi | 12.2 | 13.6 | Manual | 250 | |
21 1/4”/ 2000psi | 13.2 | 15.4 | Manual | 250 |
