SEH35... Electro-thermal Actuator
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Menred | |
| Model Number | SEH35 | Type | Other, Heating, Electro-thermal actuator |
Product Description
SEH35...Electro-thermal Actuator
Introduction
The SEH35.XX can be used with electrical on/off controls to activate several types of valves and floor heating manifolds, the actuator is made for either 24V or 230V supply in normally closed.
Application
Fitted on manifolds or small valves for the control of warm-water(floor) heating systems used in commercial buildings, residential buildings, light industrial buildings...
Features
> Wax-filled element from France, PTC heating to start
> Spring re-set function, the valve close or open when power off( normal closed and normal open)
> Noise-free operation
> Position indicator on actuator
> Nut connects for install and dismounting easy
> Normal closed factory setting is open that is easy to water pressure testing( It will return to normal after the first power on connecting)

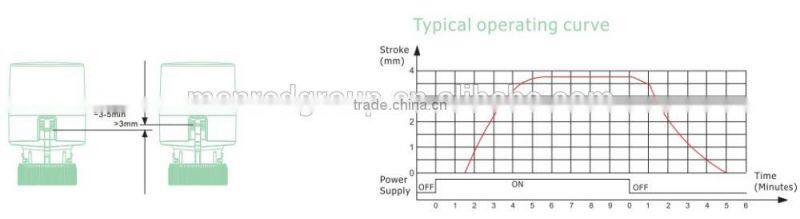

Technical data
Voltage: 230V/220V, AC24V,110V
Power consumption: 2W
Force: 110N
Stroke: 3mm
Running time: 180S
Valve interface: Cap nut M30X1.5 mm
Ambient temperature:5℃-50℃
Cable Length: 900 mm
Housing material: PC+GF10
Protective housing: ±45℃,IP43, 45℃...90℃IP41
