M6.27 Water-mixing Temperature Control Center
- Ningbo/Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Menred | |
| Model Number | M6.27 |
Product Description
M6.27... water-mixing temperature control center
Introduction

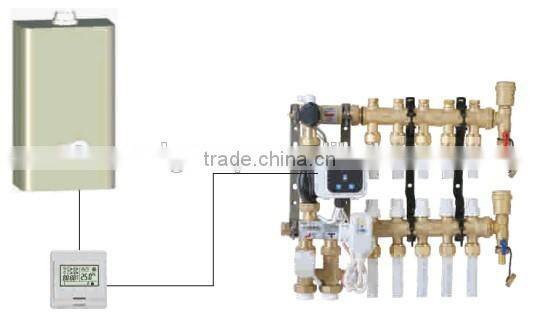

M6.27 LIH water-mixing center is designed for under floor heating(e.g. heating resource is boiler), it has outside compensated temperature regulating function and increased by-pass valve closed to the heating resource uint, which made the returned back water temperature more than 55℃from souce-side. To avoid the condensing water caused by low return water, that will increase boiler's heating exchange life.
Technical data
Max. pressure: 10bar
No more than 200m²
Temperature setting range: 35-60℃
The control accuracy: ±2℃
Voltage: 230V,50Hz
Pump: 6M
Max. power consumption: 100W
Rated flow: 2000L/h
Descaling and water protection function
Application
