DMF Series Electromagnetic Embedded Pulse Air Valve
- All of china port
- T/T L/C Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Diaphragm | |
| Pressure | Low Pressure | Power | Solenoid | |
| Material | Alloy | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | 1-3 Inch | |
| Place of Origin | Zhejiang, China | Model Number | DMF-Y-50S | |
| Brand Name | FESCOLO |
Product Description
Specifications
1.Embedded pulse air valve2.Available from 1" to 3"
3.High Flow,electromagnetic power
4.CE certificate
5.Long life

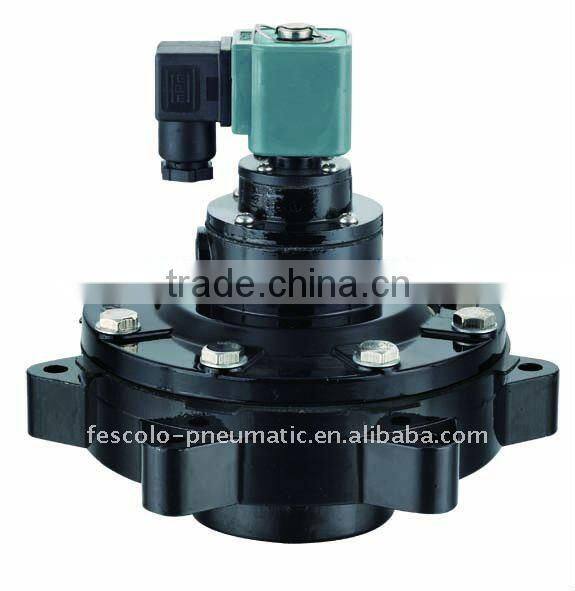

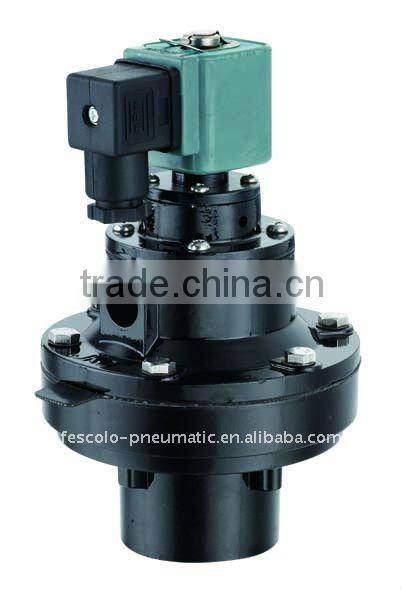

Embedded pulse air valve
DMF-Y-50S
1.Electromagnetic pulse valve is controlled through electric signal control valve body.
2.DMF Series Embedded Electro-magnetic Pulse Valve
3.DMF Series Right-angle Electro-magnetic Pulse Valve Thread type
4.DMFseries Explosion-proof Electro-magnetic Pulse Valve
5.QMFSeries Gas Control Electro-magnetic Pulse Valve
5. MCFSeries Electro-magnetic Pulse Valve
6.AMF Series Electro-magnetic Pulse Valve
7.YMF Series Embedded Electro-magnetic Pulse Valve
Order code :
Actuating Pressure | 0.2~0.6Mpa |
Actuating Medium | clean air |
Temperature | High:230°C ,Medium:150°C, low:80°C ; >-25°C |
Voltage | DC24V,AC220V/50HZ,AC110V |
Current | 0.8A ;0.46;0.23 |
Operating Environment | 1,Temperature: -25°C~80°C~150°C~230°C |
Service Life of Membrane | One million times |
Service Life of Electromagnetic Pulse Valve | 3years in the condition of standard installation, proper use and reasonable maintenance |

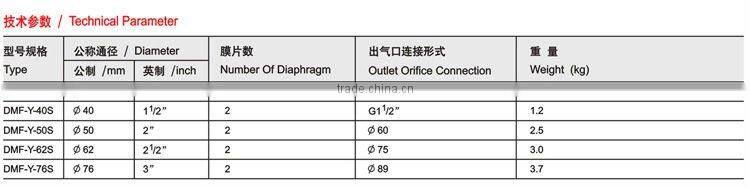

DMF-Y-40S :
DMF-Y-50S:
