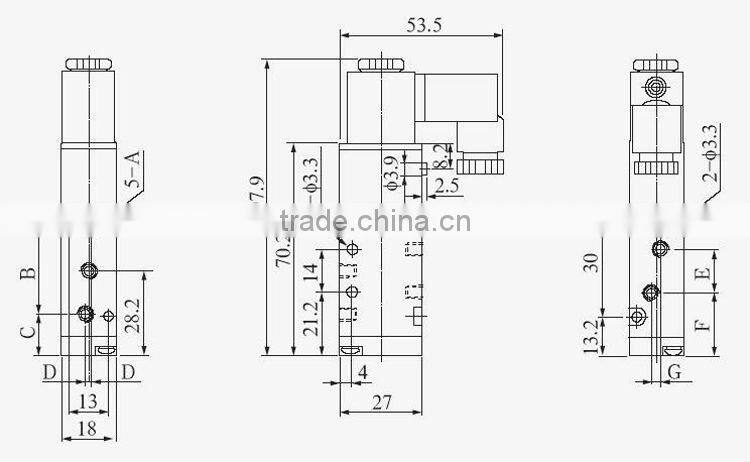

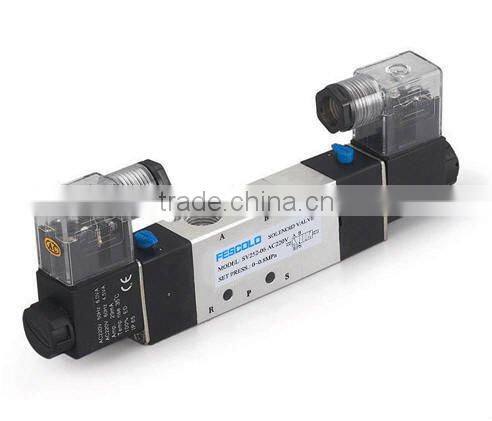

1/4" Two Position Small Solenoid Valve SV22-08
- All of China port
- Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Shutoff | |
| Pressure | High Pressure | Power | Solenoid | |
| Material | Alloy | Temperature of Media | Low Temperature | |
| Media | Gas | Port Size | 1/4-2 | |
| Place of Origin | Zhejiang, China | Model Number | SV22-08 | |
| Brand Name | FESCOLO |
Product Description
Specifications
1.SV22 small solenoid valve2.it is small type with CE certification
ing pressure 0.5~0.8 Mpa
Power:solenoid ,1/4"
SV22 small Solenoid valve
Two position
1/4" port size
1)Valve Position number: two positions five ways
2) Ambient temperature: -5~50°C
3) solenoid valve working pressure: 0.15-0.8MPa
4) solenoid Voltage: DC 24V/DC12V or AC 24V/110V/220V/380V (50/60/Hz)
Solenoid Shortest excitation time: 0.2 second
SV251-08 valve specification :
Media | Compressed air | |
Applicable pressure range | 0.15~0.85Mpa | |
Proof pressure | 1.2Mpa | |
Ambient and fluid temperature | -5~60°C | |
Valve Material of body | Aluminum alloy | |
Standard voltage | DC12V,DC24V,AC24V,AC110V,AC220V,AC380V | |
Solenoid Power consumption | AC220V | 2.0W |
DC12V,AC110V,AC380V | 2.5W | |
DC24V | 3.0W | |
AC24V | 3.5W | |
Allowable voltage range | -15%~10% | |
IP rate | IP65 | |
Insulation rate | Class F | |
Action | Internally piloted | |
Min. activate time | 0.05 s | |
Lubrication | Needless | |
