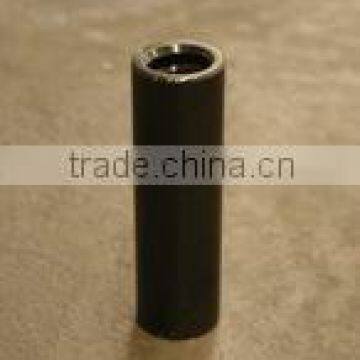

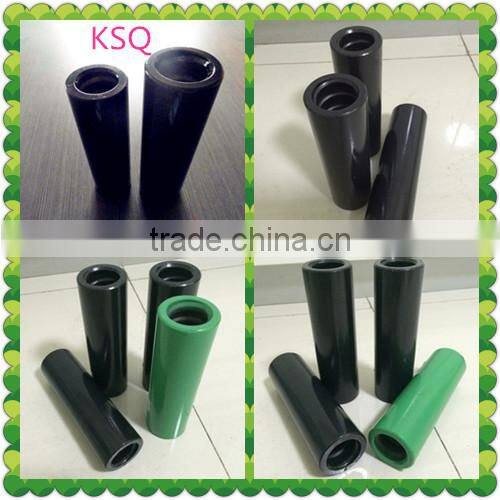

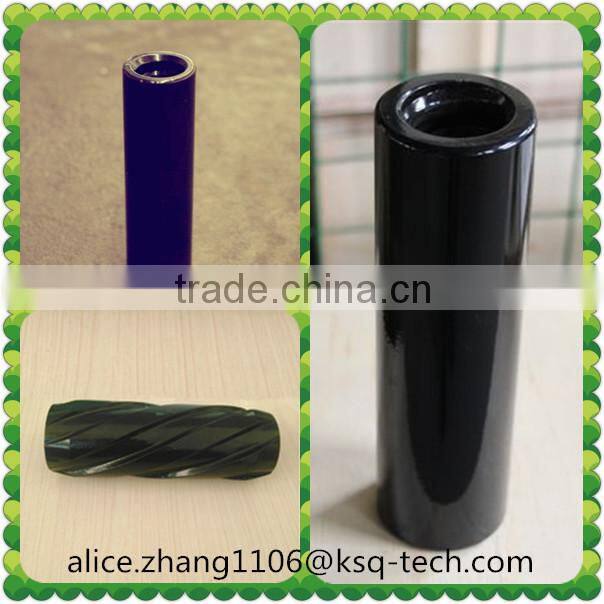

Threaded R38 T38 T45 T51 Coupling Sleeves for Bench Rock Drilling
- Tianjin Port Huangpu Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
T38 T45 T51 Thread Rock Coupling Sleeves Drill Bits
-
Coupling Sleeve T38 / T45 Drill Coupling / T51 Drill Rod Coupling
-
T38 Coupling , Coupling Sleeve , Coupling Adapter
-
T38 - T51Thread Male Female Rock Drilling Bit Adapter
-
T38 T45 T51 Drill Pipe Coupling / Mining Equipment Accessories-Coupling Sleeve
-
Underground Mining Threaded Drill Coupling,T45, Dia 80mm, Length 225mm
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | Coupling Sleeve | Type | Drill Sleeve | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Other, Carbon Steel, 45CrNiMoVa | Processing Type | Forging | |
| Use | Other, Mining, quarrying, tunneling |
Product Description
Threaded R38 T38 T45 T51 Coupling Sleeves for Bench Rock Drilling
Couplings sleeve are used to well connect the shank adapter to the drill rods
or well contact two extensionrods for transmitting energy. It has standard type
coupling and crossover coupling.
Basic Information
Product Name: | Thread coupling sleeve |
Thread | R25,R28,R32,R38,T38,T45,T51 |
Diameter | 35mm-77mm (or 1 3/8 inch to 3 inch) |
Length | 150mm-235mm (or 6 inch to 9 1/4 inch) |
Material: | High strength alloy steel bar |
Type | full-bridge, semi-bridge etc. |
Color | Green, Gold, Black or based on customer requirements. |
MOQ: | No MOQ required for testing and trial order |
Applications
R25, R28, R32, R38
Used in drifting and tunneling.
T38, T45, T51
Used in benching and long hole drilling.
Processing
CNC milling and proprietary heat treatment process
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification
| Coupling Sleeve | ||||||
| Length | Diameter | Thread | Weight | Part Number | ||
| mm | inch | mm | inch | kg | ||
| R25 Coupling Sleeve | ||||||
| 150 | 6 | 35 | 1 3/8 | R25 | 0.7 | 4148300429 |
| 155 | 6 1/9 | 44 | 1 3/4 | R25 | 1.0 | 4148300430 |
| 160 | 6 2/7 | 38 | 1 1/2 | R25 | 1.3 | 4148300431 |
| R28 Coupling Sleeve | ||||||
| 150 | 6 | 40 | 1 4/7 | R28 | 0.9 | 4148300483 |
| 170 | 6 2/3 | 55 | 2 1/6 | R28 | 2.0 | 4148300484 |
| R32 Coupling Sleeve | ||||||
| 150 | 6 | 44 | 1 3/4 | R32 | 1.0 | 4148300646 |
| 160 | 6 2/7 | 44 | 1 3/4 | R32 | 1.1 | 4148300647 |
| R38 Coupling Sleeve | ||||||
| 170 | 6 2/3 | 55 | 2 1/6 | R38 | 1.9 | 4148300703 |
| 190 | 7 1/2 | 55 | 2 1/6 | R38 | 2.1 | 4148300704 |
| T38 Coupling Sleeve | ||||||
| 190 | 7 1/2 | 55 | 2 1/6 | T38 | 2.1 | 4148300803 |
| T45 Coupling Sleeve | ||||||
| 210 | 8 1/4 | 63 | 2 1/2 | T45 | 3.0 | 4148300881 |
| 210 | 8 1/4 | 66 | 2 3/5 | T45 | 3.3 | 4148300882 |
| T51 Coupling Sleeve | ||||||
| 225 | 8 6/7 | 71 | 2 4/5 | T51 | 4.6 | 4148300961 |
| 225 | 8 6/7 | 76 | 3 | T51 | 4.8 | 4148300962 |
| 235 | 9 1/4 | 72 | 2 5/6 | T51 | 4.7 | 4148300963 |
| 235 | 9 1/4 | 77 | 3 | T51 | 4.9 | 4148300964 |
Keywords
Thread coupling sleeve, R25 R28 R32 R38 T38 T45 T51 coupling sleeve
Crossover coupling, full bridge coupling, semi- bridge coupling
Manguito de acoplamiento de rosca, manguito de acoplamiento R25 R28 R32 R38 T38 T45 T51
Acoplamiento Crossover, acoplamiento de puente completo, acoplamiento puente semi-
