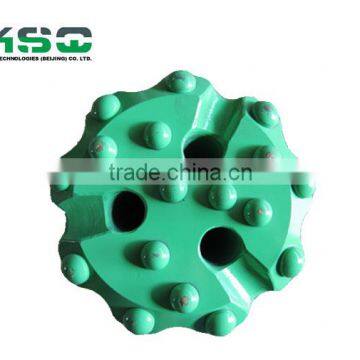

DTH Bits
Negotiable
/ Piece
20 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- Beijing or Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | Low Pressure DTH Bits1694-1703 | Type | Other, DTH Bit | |
| Material | Other, Tungsten Carbide, Tungsten Carbide | Use | Other, Rock Drilling |
Product Description
Specifications
High grade tungsten carbide insertsBit bodies manufactured from high grade steel and processed using state-of-the-art CN
Description
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths
Application
• Underground mining
• Quarry benching operations
• Water well drilling
Specification
<
<
| Part Number | Flushing Holes | Diameter (mm) | Weight (kg) |
| 4148301694 | 2 | 90 - 95 | 3.6 |
| 4148301695 | 3 | 100 - 105 | 4 |
| 4148301696 | 3 | 105 - 110 | 4.2 |
| 4148301697 | 3 | 110 - 115 | 4.5 |
| 4148301698 | 3 | 120 - 125 | 5 |
| 4148301699 | 3 | 130 - 135 | 6.8 |
| 4148301700 | 3 | 110 - 115 | 6.1 |
| 4148301701 | 3 | 110 - 115 | 6.3 |
| 4148301702 | 3 | 120 - 125 | 7 |
| 4148301703 | 3 | 125 - 130 | 7.1 |
<
| Product Code and Brief Description | Gauge Buttons ( No. x mm) | Front Buttons ( No. x mm) | DTH Hammer |
| DTH90T5 | 5 x 14 (Spherical) | 5 x 12 | DTH90, DTH90-I |
| DTH90-100 | 6 x 14 | 5 x 12 | DTH90, DTH90-I |
| DTH90-105 | 6 x 14 | 3 x 12 | DTH90, DTH90-I |
| DTH90-110 | 8 x 14 | 3 x 12 | DTH90, DTH90-I |
| DTH90-120 | 8 x 14 | 3 x 12 | DTH90, DTH90-I |
| DTH90-130 | 9 x 14 | 4 x 12 | DTH90, DTH90-I |
| DTH110-110 | 6 x 14 | 5 x 12 | DTH110 |
| DTH110-115 | 6 x 14 | 5 x 12 | DTH110 |
| DTH110-120 | 6 x 14 | 6 x 12 | DTH110 |
| DTH110-125 | 6 x 14 | 7 x 12 | DTH110 |
