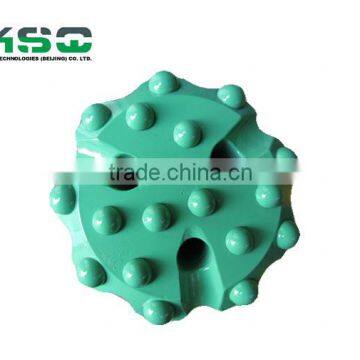

DTH Bits
Negotiable
/ Piece
20 Pieces(Min. Order)
- Beijing or Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | Low Pressure DTH Bits1704-1720 | Type | Other, DTH Bit | |
| Material | Other, Tungsten Carbide, Tungsten Carbide | Use | Other, Rock Drilling |
Product Description
Specifications
High grade tungsten carbide insertsBit bodies manufactured from high grade steel and processed using state-of-the-art CN
Description
• Small to medium size drilling diameters
• Works in low pressure range, capable of drilling shallow to medium hole lengths
Application
• Underground mining
• Quarry benching operations
• Water well drilling
Specification
<
<
| Part Number | Flushing Holes | Diameter (mm) | Weight (kg) |
| 4148301704 | 3 | 130 - 135 | 7.3 |
| 4148301705 | 3 | 135 - 140 | 8 |
| 4148301706 | 3 | 140 - 145 | 8.2 |
| 4148301707 | 3 | 150 - 155 | 9 |
| 4148301708 | 3 | 155 - 160 | 16.3 |
| 4148301709 | 3 | 160 - 165 | 17.3 |
| 4148301710 | 3 | 180 - 185 | 19.6 |
| 4148301711 | 3 | 200 - 205 | 23 |
| 4148301712 | 3 | 175 - 180 | 22.8 |
| 4148301713 | 3 | 185 - 190 | 23.24 |
| 4148301714 | 3 | 195 - 198 | 24 |
| 4148301715 | 3 | 200 - 203 | 25.8 |
| 4148301716 | 3 | 210 - 213 | 26.5 |
| 4148301717 | 3 | 220 - 223 | 28.5 |
| 4148301718 | 3 | 230 - 233 | 32 |
| 4148301719 | 3 | 240 - 243 | 36 |
| 4148301720 | 3 | 250 - 253 | 45 |
<
| Product Code and Brief Description | Gauge Buttons ( No. x mm) | Front Buttons ( No. x mm) | DTH Hammer |
| DTH110-130 | 6 x 14 | 7 x 12 | DTH110 |
| DTH110-135 | 6 x 14 | 7 x 12 | DTH110 |
| DTH110-140 | 6 x 14 | 8 x 12 | DTH110 |
| DTH110-150 | 6 x 14 | 8 x 12 | DTH110 |
| DTH150-155 | 15 x 16 | 4 x 14 | DTH150 |
| DTH150-165 | 15 x 16 | 5 x 14 | DTH150 |
| DTH150-185 | 15 x 16 | 6 x 14 | DTH150 |
| DTH150-200 | 9 x 16 | 12 x 14 | DTH150 |
| DTH170-175 | 15 x 16 | 8 x 14 | DTH170 |
| DTH170-185 | 15 x 16 | 8 x 14 | DTH170 |
| DTH170-195 | 15 x 16 | 10 x 14 | DTH170 |
| DTH170-200 | 15 x 16 | 9 x 14 | DTH170 |
| DTH170-210 | 12 x 16 | 6 x 14, 6 x 16 | DTH170 |
| DTH170-220 | 15 x 16 | 11 x 14 | DTH170 |
| DTH170-230 | 15 x 16 | 12 x 14 | DTH170 |
| DTH170-240 | 21 x 16 | 6 x 14 | DTH170 |
| DTH170-250 | 15 x 16 | 4 x 14 | DTH170 |
