Pearmain HD Ptz ip Camera Outdoor Ptz Camera
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PEARMAIN | |
| Model Number | PE3036OS1-IP |
Product Description

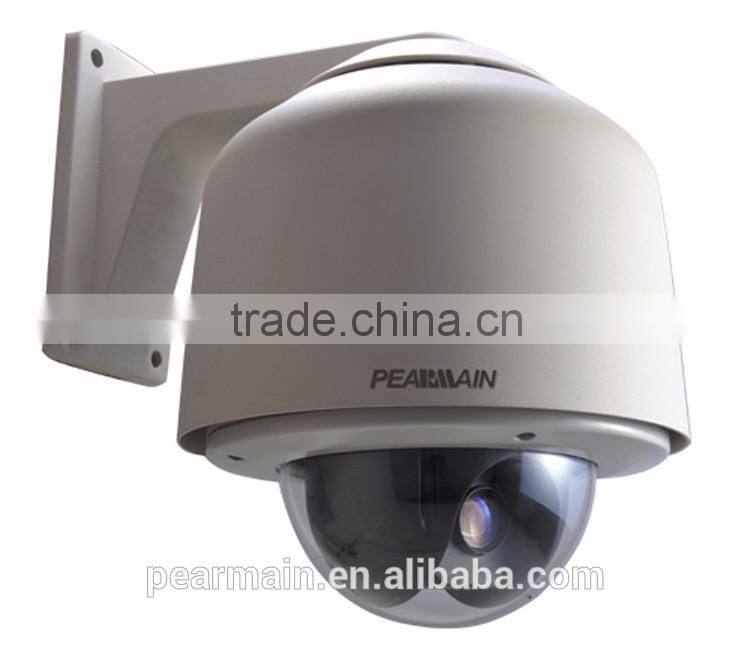

Pearmain HD ptz ip camera outdoor ptz camera
Introduction Features
Support High definition output(1920x1080@30p)network encode output.
Support progressive scanning to have clear video, WDR.
Support remote firmware updating by TCP/IP.
Powerful OSD menu for setup of Programmable Functions
With function of auto focus, auto iris, auto white balance and auto backlight compensation etc. to have clear camera scene
at any time.
Built-in linear power for anti-surge and anti-Lightning protection
it could set address to be 0, offer convenience for maintaince.
Preset position storage function, it can save maximum 255 preset.
8 cruise tours, every tour can call 32 preset.
4 Pattern tours, to save the scan route by joystick.
1 automatic scan, the scope of two limits can be scanned gradually, the scanning steps are optional.
Automatic recover to movement before power failure.
Power-up action, preset, cruise tour, pattern tour, auto scan, etc. available for it.
Park action, preset, cruise tour, pattern tour, auto scan, etc. available
360° continuous panning, 180 tilting.
Horizonal scan within 355 degree.
On-Screen display: Compass, Pan, Tilt, Zoom ratio.
Network
Video Compression | H.264 MP |
Pixel | 1920*1080 |
Frame Rate | 1080p/29.97fps, 1080p/25fps, 720p/59.94fps, 720p/50fps |
Network | 10/100M |
Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP etc... |
Port | RJ-45,10/100Base-T |
Video detection | support |
Network | 10/100M |
Bit rate | 50Kb-8Mb |
Browse | Web browse and setting |
User login | 6, at same time. |
Block Camera (Sony FCB-EH6300)
Image sensor | 1/2.8-type ‘Exmor’ CMOS |
Signal system | HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out 29.97 PsF), 1080i/50 (frame out: 25PsF) 720/59.94p, 720/50p, 720p/29.97, 720p/25 SD: NTSC, PAL (640x360) |
Number of total pixels | Approx. 3.27 Megapixels |
Lens | 20x optical zoom, f=4.7 mm (wide) to 94.0 mm (tele), F1.6 to F3.5 |
Digital zoom | 12x (240x with optical zoom) |
Angle of view (H) | 1080p/30 mode: 55.4° (wide end) to 2.9° (tele end)720p/60, 30 mode: 37.6° (wide end) to 1.95° (tele end) |
Minimum working distance | 10 mm (wide) to 1000 mm (tele) (Default 300mm) |
Sync system | Internal |
Minimum illumination | High sensitivity mode: 0.5 lx (ICR Off) 0.095 lx (ICR On) (F1.6, 50 IRE)Normal mode: 1.7 lx (ICR Off) 0.3 lx (ICR On) (F1.6, 50 IRE) |
S/N ratio | More than 50 dB |
Electronic shutter | 1/1 to 1/10,000 s, 22 steps |
White balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapour Lamp (fix/Auto) One-push, Manual |
Gain | Auto/Manual (-3 to +28 dB, +2 dB step/total 16 steps) Max. Gain Limit (+6dB to +28 dB, +2 dB step/total 12 steps) |
AE control | Auto, Manual, Shutter Priority, Iris Priority, Bright, Spot AE, Slow AE (approx 5 minutes) |
EV compensation | N/A |
"Pearmain Electronics Co., Ltd" was founded in 1996, which is a professional surveillance products provider owing the ability of R&D, producing, marketing and service. Pearmain has a complete production line and endeavors itself to providing our customers with entire video surveillance system solutions.
Nowadays, Pearmain has developed itself into one of leading matrix manufacturers with 18 branches in China. We have 20 years of experience in designing and researching in video surveillance field. We specially focused on designing and producing high qualified HD matrix switcher. Our product compatibility enabled us to offer second development port or SDK for interconnection and communication from the 3rd party equipment or platform from almost 70 companies.
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
