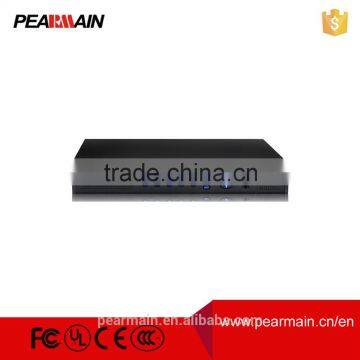

H.264 400/480 fps recording for CIF, 96fps D1 Max 16 channel DVR
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PEARMAIN | |
| Model Number | HEC15016S |
Product Description
1.H.264 main profile compression algorithm ideal for standalone DVR
2.Realtime live display up to 16 cameras,400/480fps recording for CIF, D1/HD1/CIF&QCIF adjustable
3.Pentaplex function:live,recording,playback,backup & remote access;
4.Support Dual-streams,to make mobile monitoring very easy,flexible for network transmission
5.Multiple control methods:IR remote controller,USB mouse and front panel press button
6.Smart video detection:motion detection,video blind,video loss
7.Smart camera settings:privacy masking,camera lock,color setting,and tittle display
8.Pan Tilt Zoom and Speed Dome Control:more than 60 protocols supported ,preset,scan,auto pan,auto tour,pattern,auxiliary function supported
9.Easy backup methods: USB devices,remote network and client software backup
10.Alarm triggering screen tips,buzzer,PTZ preset,e-mail,snapshot &FTP upload
11.Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm,Raid function
12.Powerful network software:built-in web server,multi-DVR client &SMS Networking access for remote live viewing,recording,playback,setting,system statu,event log,e-mail & ftp function
13.Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support web client, standalone client and SDK.
14.With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.
15.Enable strong multi-way synchronization with max 16 channel playback, realize the zero-delay between playback channels
System | Main Processor | High performance embedded microprocessor |
Operating System | Embedded LINUX | |
System Resources | Pentaplex function:live,recording,playback,backup & remote access | |
User Interface | GUI,on-screen menu tips | |
Control Device | Front panel,USB mouse,IR remote control | |
Video | Video Standards | PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
Video Compression | H.264 main profile | |
Video Recording | D1:PAL1f/s-25f/s NTSC1f/s-30f/s; | |
Motion Detection | Zones:396(22*18)detection zones,Sensitivity:1-6(6 is highest) | |
Trigger recording,PTZ movement,tour,alarm, email & FTP | ||
TV Output Adjustment | Adjust TV output color & display zone | |
Audio | Audio Compression | G711A |
Bi-directional Talk | Support | |
Record & play back | Recording Mode | Manual>Alarm>Video Detection>Continuous |
Playback | Max. 16 channel playback simultaneously, | |
Pause,stop,rewind,fast play,slow play,next file,previous file,repeat,shuffle,backup selection | ||
Storage & backup | Search Mode | Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
Space Occupation | Audio28.8MB/H Video150-200 MB/H | |
HDD Management | Hard disk hibernation technology, HDD faulty alarm & Raid(Redundancy) | |
Backup Mode | Network download/Flash stick | |
Interface | Video Input | 16 channel,BNC,1.0Vp-p,75Ω |
Video Output | 1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output | |
Audio Input | 1 channel ,RCA, 200-2800mV,30KΩ | |
Audio Output | 1 channel ,RCA, 200-3000mV,5KΩ | |
Alarm input | 1 channel, programmable, ground, manual open/closed,Trigger recording, PTZ movement, tour, alarm, e-mail & FTP | |
Relay Output | 1 channel,30VDC,1A,NO/NC,form-C | |
Net Interface | RJ-45 (10M/100M) | |
USB Interface | 2*USB2.0 ports for mouse and backup | |
PTZ Control | 1 RS485 | |
SD Interface | N/A | |
Hard Disk | 1 SATA port(Max2048G) | |
Environmental | Power Supply | 12V/4A |
Power Consumption | <10W | |
Working Temperature | 0-55 | |
Working Humidity | 10%-90% | |
Atmosphere Pressure | 86kpa-106kpa | |
Dimension | Packing size 390*302*130mm | |
Weight | 3.5KG | |
Mounting | Desktop |
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
