Home > Products > Keyboard Controller > IP Keyboard Controller/joystick With Furnish 7" LCD (display up to 1080P Video)
IP Keyboard Controller/joystick With Furnish 7" LCD (display up to 1080P Video)
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
CCTV Keyboard for Matrix Switcher and Camera Control
-
CCTV Keyboard Controller / Joystick for SDI Camera/PTZ/Matrix System
-
IP Joystick Keyboard Controller With 2ch HDMI Output
-
CCTV Keyboard Controller/Main Keyboard for Matrix Switcher and Camera Control
-
CCTV IP Keyboard Controller/joystick With Furnish 7" LCD Screen Display Video (up to 1080p)
-
CCTV Keyboard Controller / Joystick for SDI Camera, SDI PTZ and SDI Matrix System
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PEARMAIN | |
| Model Number | PE5126 |
Product Description

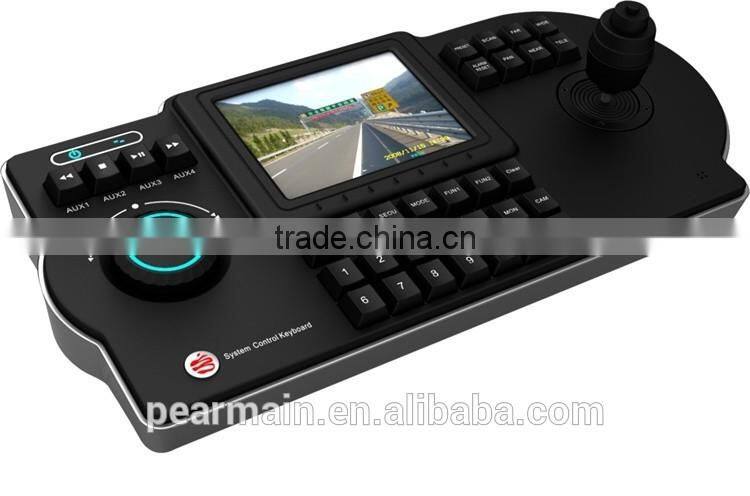

IP keyboard controller/joystick with furnish 7" LCD (display up to 1080P video)
Furnish 7” touch LCD, 800x480, display camera video (up to 1080p)
Compatible with Matrix, DVR, network ptz/camera, decoder, multiplexer, etc.
4-D joystick and user-definited keys to freely definte real-time video capture and local recording
Support Macro code, to simplify complicated operation code
Multi-protocol support
Joystick & key Power-on detection, display its status.
Support USB mouse and VGA output
1 adiminstrator User, 1 management user and 64 operation user
PE5126RST, controller for ptz, DVR only, 1ch buit-in monitor, touch panel is opitional
PE5126ST: having all functions of PE5126RST, can control PE40/50/50M/60/PE50S/PE60S series matrix, can control NET matrix, functions of Marco and Ethernet control, touch panel is opitional
PE5126: having all functions of PE5126ST, controller of PE90FHD high definition matrix platform.
LCD screen: | 7” TFT LCD monitor with touch panel |
Joystick: | 4-axis joystick |
Communication rate | User definited |
Relay drive | 1A/24V |
Power off memory | 10 years |
Power supply: | 9VDC |
Power consumption: | 5W |
Working temperature: | -10°C ~ +45°C |
Working humidity: | 10%~90% |
Size: | 370mm (L)×190mm (W) ×55mm (H) |
Weight: | 1.5Kg |
Port on keyboard:
Communication | 10M/100M Ethernet |
RS-485 | |
RS-422 | |
RS-232 | |
Ethernet interface | 1 RJ45 |
network management | 1 RJ45 |
Backup & Storage | 1 USB |
SD storage | 1 SD card; |
RS485 | 1 RJ45; |
RS422 | 1 RS-422 interface; |
RS232 | 1 RS-232, by serial port |
Video output | 1 VGA |
Touch screen power supply | USB |
Contact Closure | Contact Closure |
Video | BNC |
"Pearmain Electronics Co., Ltd" was founded in 1996, which is a professional surveillance products provider owing the ability of R&D, producing, marketing and service. Pearmain has a complete production line and endeavors itself to providing our customers with entire video surveillance system solutions.
Nowadays, Pearmain has developed itself into one of leading matrix manufacturers with 18 branches in China. We have 20 years of experience in designing and researching in video surveillance field. We specially focused on designing and producing high qualified HD matrix switcher. Our product compatibility enabled us to offer second development port or SDK for interconnection and communication from the 3rd party equipment or platform from almost 70 companies.
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
