Product Details
| Place of Origin | Zhejiang, China | Brand Name | PEARMAIN | |
| Model Number | PE5122 |
Product Description

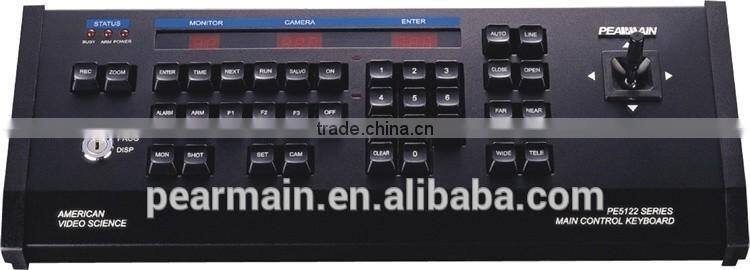

CCTV keyboard controller maximum switch up to 512 cameras among 32 monitors
Luminary Display:
Three luminary numeral duct display window is to display input camera number, called camera number and called monitor.
Camera/Monitor Selection
PE5122 can switch up to 512 cameras to any one among 32 monitors.
Pan/ tilt Control
Operators can control pan/ tilt by the joystick flexibly. And also it can select menu with joystick when system programming.
Electronic Lens Control
PE5122 has the functions to control electrify lens with keys, the function including iris (open-close), focus (near-far), zoom (wide-Tele).
Alarm Control
PE5122 can select alarm on/off and alarm mode etc.
System Program
It can enter into menu program status by key switch, to setup system data, such as time, switch, alarm and jurisdiction, to satisfy operators’ requirements.
Salvo Switch
System can switch multi-camera images to multi-monitor. There are 32 groups salvo switch sequences and 16 camera images in each group. System set through salvo switch menu.
Universal Tours/Sequences
System could program and save 32 Universal Tours in advance, every tour is made up with 32 camera images, dwell time of every camera could be adjustable separately, every camera signal could be some preset, a tour may include the same camera image multiple times, multiple presets of a camera.
Camera images’ Jumping Over and Inserting
Images’ jumping over: to jump over camera images no need to display when automatic switching, to mask automatically on the monitor.
Images’ inserting: to display images which need display but not having been displayed, to insert into automatic switching, and to display images automatically on monitor.
Forward /Rear Switch
To switch camera images forward or rear step by step on any monitor.
Multiplexer Control
PE5122Z keyboard to add 5139 multiplexer adapter can control all of functions of ROBOT multiplexer, such as frame in frame, four- multiplexer, nine- multiplexer, sixteen-multiplexer, image select, recorder and video play back, etc.
Individual Monitor Automatic Switch
PE5122 can appoint any group of continuous camera images on any monitor. These images can switch automatically and dwell time of each camera can be programmed.
Main matrix Password input
Password input of main matrix is a safety measurement, It can ensures system only be used by the person who have the operation authority, The operators only can enter into system by password, initialization password is 11111, system can have up to 16 users and individual password.
Communication Test
System would check if communication port is normal by BUSY numinous dust indication.
Monitor Selection: PE5122 serial can control 32 monitors at most;
Camera Selection: Call and control 512 cameras at most;
Status Luminous Numeral Duct: (two) to Indicate if the status of the communication is normal and the power supply is working;
Monitor Numeral Dust: (2 digit) to display the present active monitor number under keyboard control;
Camera Numeral Dust: (3 digit) to display camera number under control;
Input Numeral Dust: (3 digit) to display the present entered number;
Connection Mode:2-pin STP between keyboard and main matrix
Communication | RS485 |
Connection cable with master | STP (Shielded Twisted Pair) |
Joystick | 2-axis |
Communication distance | 1300m |
Power supply | 9VDC 500MA |
Operate temperature | -10℃---+35℃ |
Installation method | desktop or rack |
Weight | 2.5kg |
Dimension | 163(width) *282(length)* 46(height )mm |
"Pearmain Electronics Co., Ltd" was founded in 1996, which is a professional surveillance products provider owing the ability of R&D, producing, marketing and service. Pearmain has a complete production line and endeavors itself to providing our customers with entire video surveillance system solutions.
Nowadays, Pearmain has developed itself into one of leading matrix manufacturers with 18 branches in China. We have 20 years of experience in designing and researching in video surveillance field. We specially focused on designing and producing high qualified HD matrix switcher. Our product compatibility enabled us to offer second development port or SDK for interconnection and communication from the 3rd party equipment or platform from almost 70 companies.
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
