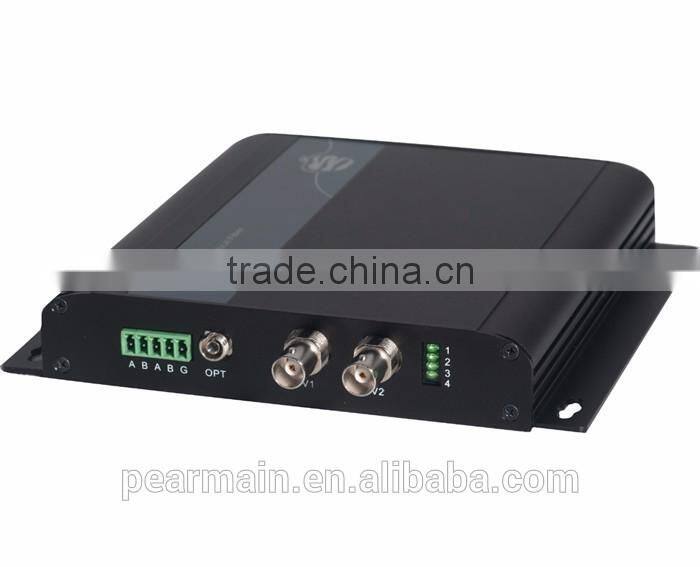

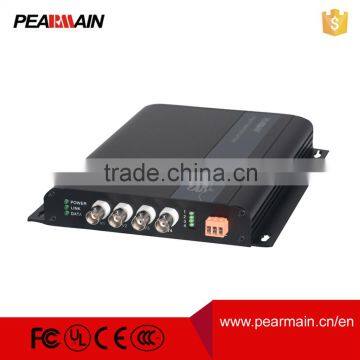

High Quality Composite Analog Video Fiber Optics

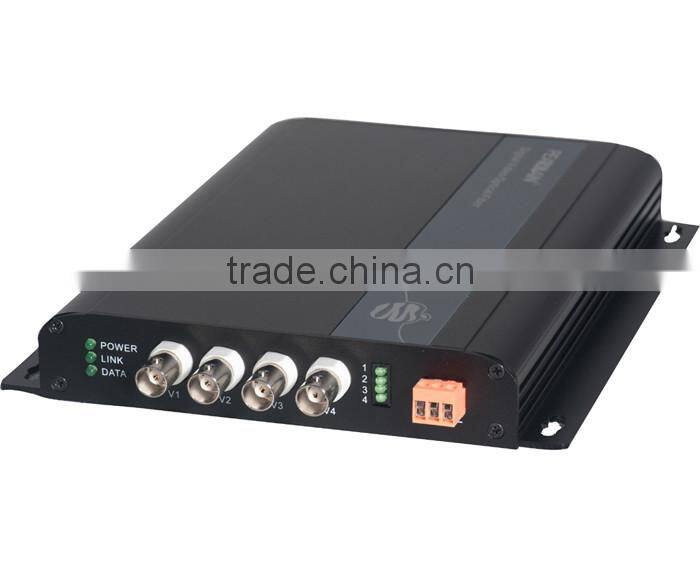

High quality composite analog video fiber optics

Video

Video Channel: 2

Video Format: NTSC, PAL, SECAM

Video voltage:1Vp-p,75Ω

Max-input Voltage:1.5Vp-p,75Ω

Bandwidth: 10MHz

Differential Gain:≤0.7%

Differential Phase:≤0.7°

Video SNR:≥70dB

Encoding: 10BIT PCM

Bit Rate over Fiber:≥15.36MHz

Connector: BNC

Audio

Frequency Response: 50Hz-20KHz

Audio Input/Output Impedance:10K(Unbalanced)

Audio Max-Input/Output Voltage:3.5Vp-p(Unbalanced)

Audio distortion:≤1%

Audio SNR:≥82dB

Audio Coding Mode: 24BIT digital audio

Bit Rate:48K

RS232 Data

Standard: E1A/TIA-232E, CCITV.28

ESD protect:±15KV body static

                  ±8KV IEC1000-4-2 contact discharge

                 ±8KV IEC1000-4-2 discharge by air

Baud rate: 0-115.2KB

error rate: 10-13

RS-422/485 Data

Standard:TIA/EIA-422-B,TIA/EIA-485-A,ITUV1.1

ESD protect:

±15KV body static

±8KV IEC1000-4-2 contact discharge

±8KV IEC1000-4-2 discharge by air

Baud Rate: 0-512KBPS

Bit Error Rate: 10-13

Contact closure

   Input/output: relay interface

   Interface: RJ45

System Parameter

MTBF(Mean Time Between Failures):>100 thousand hours

System Bit Error Rate: better than 10E-13

Indicator: Power indicator, Video/data transmit lock indicator, fiber link indicator

 Power Supply:

Stand-alone type: 1A@6VDC

Rack mount type: 220V AC0.25A

Dimension:

18 slot Rack mount:

         Dimension: 480x360x44mm

Weight:3.5Kg

Material: aluminum

Surface Disposal: sandblast oxidation

Color: silver gray

Stand-alone:

Dimension:195X129 X21

Weight:1Kg

Material: aluminum

Surface Disposal: sandblast oxidation

Color: silver gray

Environment

Operating Temperature:-40℃~74℃

Storage Temperature:-55℃~85℃

Humidity :0~95% non-condensing

Electromagnetism compatibility

Accord with GJB151A-97, SC

Operating state indicator

PE-TV2D↑↓E1xxx transmitter

POWER : power indicator

 LOCKED: transmit lock

 DATA: data indicator

PE-RV2D↑↓E1xxx receiver

POWER: power indicator

LOCKED: transmit lock

DATA: data indicator

Network management system function

   Fiber link state detection

  Video channel detection

  Operating state detection (including operating temperature, voltage and so on)
