Pearmain Network Modular 512*64 Video Matrix Switcher With Analog Signal In/out.
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Analog Signal Modular Network Cctv Matrix Switcher Max to 256*32
-
Analog Modular Cctv Matrix Switcher Max to 512*64
-
Middle Analog Cctv Video Matrix Switcher Max to 64*16
-
Network Modular Matrix Switcher 256*32 for Cctv Matrix System
-
Analog Cctv System Video Matrix Switcher Max to 128*32
-
64*16 Middle Scale Analog Video Matrix Switcher
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PEARMAIN | |
| Model Number | PE60S |
Product Description

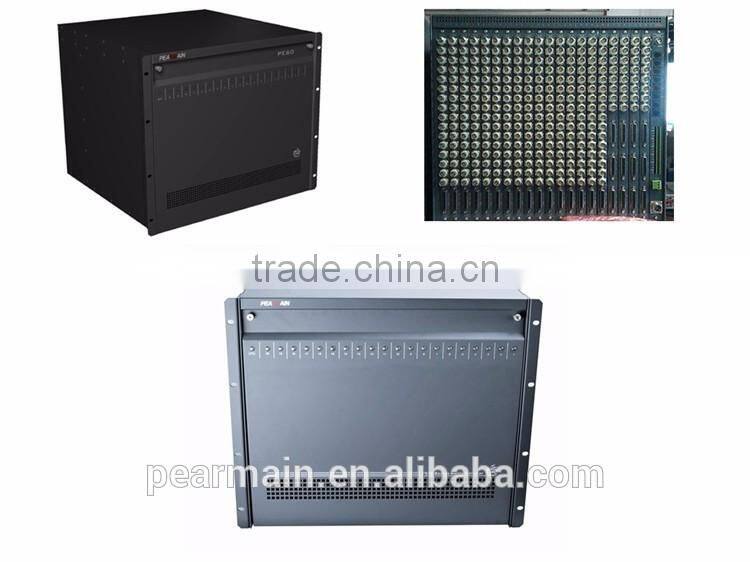

Pearmain Network modular 512*64 Video Matrix Switcher with analog signal in/out.
Communication | |
Communication | RS-422, RS-485, RS-232, TCP/IP |
Baud rate | 19200 bits/s,9600 bits/s,4800 bits/s,2400 bits/s etc. |
Interface | RS-422 RJ45 connector ( full duplex ) RS-232 RJ45 connector RS-485 3-pin3.81 connector(semi-duplex) |
System configuration | |
System User | 255 |
System capacity | Main matrix bay: 512ch input/ 64ch output Maximum input: 608ch input / 8ch output Maximum after extension: 50000ch output / 512ch output Logic value encoding: 999999 input/2048output |
Alarm capacity | 50000 |
On-screen display | Camera title: 32 character 16 lines, 42 row |
Character | English / Latin / Cyrillic |
Power-off memory time | 10 year |
Video | |
Video input | 1Vp-p/75Ω Composite signal |
Video output | 1Vp-p/75Ω Composite signal |
Signal to noise ratio | >60dB ( unweighted ) >70dB ( weighted ) |
Channel bandwidth | 5Hz~8MHz(1Vp-p with filter) 20MHz(1Vp-p,-3dB without filter) 65MHz(20mVp-p,-3dB without filter) |
Insertion gain | <0.2dB |
Differential gain | <1.0% |
Differential phase | <1.1° |
Amplitude-frequency characteristics | <1.0dB(5.8MHz) |
Adjacent Channel Crosstalk | <-55dB(PAL: 4.43MHz/NTSC: 3.58MHz) |
Adjacent channel isolation | >50dB(PAL: 4.43MHz/NTSC: 3.58MHz) |
Line Time Waveform Distortion | <1.0% |
Typical switching time | 20ms(Typical) |
Electrical Characteristics | |
Power Supply | 100~240VAC 50/60Hz Adaptive |
Power consumption | 160W |
Mechanical Specifications | |
Weight | 35KG(Full capacity) |
Installation dimension | 482.0mm(Width)×366.0mm(Depth)×532.6mm height |
Rack | 19’’ EIA standard rack |
Environmental specifications | |
Operating temperature | -10~+55℃ |
Operating Humidity | 0~90%RH(No condensation) |
"Pearmain Electronics Co., Ltd" was founded in 1996, which is a professional surveillance products provider owing the ability of R&D, producing, marketing and service. Pearmain has a complete production line and endeavors itself to providing our customers with entire video surveillance system solutions.
Nowadays, Pearmain has developed itself into one of leading matrix manufacturers with 18 branches in China. We have 20 years of experience in designing and researching in video surveillance field. We specially focused on designing and producing high qualified HD matrix switcher. Our product compatibility enabled us to offer second development port or SDK for interconnection and communication from the 3rd party equipment or platform from almost 70 companies.
Network modular 256*32 cctv matrix switcher with analog signal in/out.
1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.
2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.
3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related products for almost 20 years in China. The compatibility & quality of our products is assured.
4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as possible as we can.
5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any question.
With years of export experience along with excellent quality, advanced services and competitive prices, PEARMAIN has won numerous customers' trust and support.
All packages are well protected in the cartons, so the products can be protected from damages.
Time of shipment ranges 5-7days according to different places.
For big orders, we will arrange Air Cargo or Ocean Freight with low delivery cost. Also, we can ship out with your specified shipment agent.
