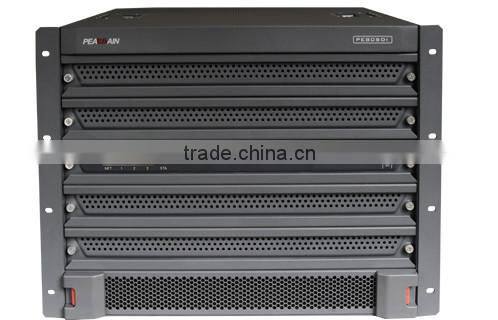

PE80 HD-SDI Digital Video Cctv Matrix Switcher

PE80 HD-SDI Digital Video Cctv matrix switcher

Full cross-point HD-SDI Matrix;

Limitless full cross-point input expending;

Single chassis maximum: 3 type matrix chassis for 64x32, 128x32, 144x144 and 288x288 in full loading

Modular board design: each modular board 8x8 in/output;

Single system expending ( not cascading) can achieve up to 1024 inputs,Full cross-point switching;

Fully supports alarm linkage function of Security industry;

PTZ control

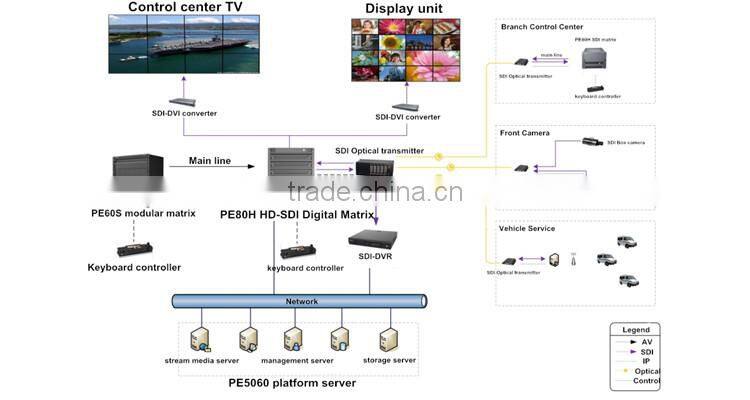

Multi-level cascading

Multi-level authorization managing function.

Modular structure, flexible composition to match different practice. realible running, easy mantainance, thoroughly solves the bottle neck of sigal quality and production capacity of large scale matrix;

The system adopts industrial grade high performance ARM9 embeded control system ,support WEB network management and netclient software. Support more than 3 levels cascading control on ethernet;

Support Plug & play, each chassis furnishes external power supply and dual control system, The matrix has many kind of serial control interface,support field flyback switching,support RJ45 ethernet control interface; .

The system supports RIUP (Removal and insertion under power). To maintain or upgrade doesn’t require replacement of complete matrix, or change of wiring, just replace the concerned module. It greatly facilitates fault diagnosis,maintaince or expending.

1. Does the product come with the cables or do they have to be ordered seperately?
All of the devices are assembled with cable and power adapter.

2. Are you a trade company or manufacturer?
We are a professional manufacturer and also a trade company.

3. What is your advantage in this field?
We have been designing & producing matrix switcher, keyboard controller and other surveillance system related

products for almost 20 years in China. The compatibility & quality of our products is assured.

4. Can you design product with special functions for me?
We are professional OEM/ODM manufacturer, we are able to design the product according to your requirement as

possible as we can.

5. If I am not clear about how to use the products, what should I do?
Each of our products has a manual, our professional after-sales team will support you in 24 hours if you have any

question.
