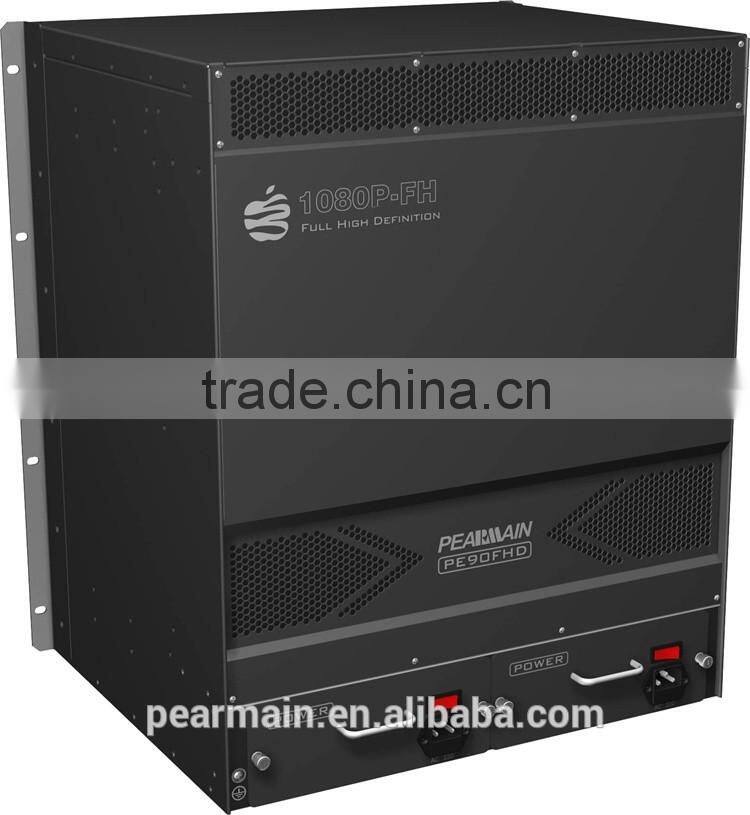

FHD (Analog/SDI/VGA/DVI/HDMI/IP) Hybrid Cctv Video Matrix Switcher

Video input

Analog video

Connection

BNC-DB44

Input signal

1.0Vp-p, 75Ω

Format

PAL/NTSC/SECAM adaptive

Video in one board

32ch video input in every board, up to 15 video boards.

Maximum

480ch

IP video

Encode

H.264/MPEG4

transmission  streaming

RTP

Stream ratio

2-8Mbps/channel

Resolution

Up to 1920×1080@30p, backward compatible

Video in single board

4ch video per board, up to 16ch board.

Maximum

Up to 64ch input

VGA/ DVI/HDMI/SDI

Format

VGA/DVI/HDMI auto identification, or YPbPr

Resolution

Up to 1600x1200@60p, backward compatible

Video in single board

4ch video per board, up to 16ch board.

Maximum

Up to 64ch input

Video output

Output port

DVI

resolution

Up to 1600×1200@60p, 1920×1080@60p, backward compatible

Screen support

Every single board to support 4 screen, up to 16 board, to have 64 screen display maximum, to support DLP/LCD splicing.

Matrix switch

IP high definition exchange

High-speed digital backboard exchange+IP exchange

Non-IP high definition matrix exchange

High-speed digital backboard exchange, 60ch input or 16ch output

Standard definition matrix exchange

High-speed digital backboard exchange, 480ch input or 60ch output

Display screen control

Splicing

Any 8ch HD of input or equal 64ch SD video can roam and splice on screen.

Video superimposition composite

To support background Highest definition still image display

Roaming image can superimpose on other video by any transparence

OSD superimposition

To support 256 color OSD full screen superimposition, can display channel and alarm etc. information

Cascade

mode

Input/output cascade, to have multiple system cascade.

Backboard

bus

type

High speed bus

Slot

17 slot (1 MCU Control board )

Exchange volume

28Gbps

Backboard volume

384Gbps

External port & others

Network port

64ch IP input port, J45

Network management port

RJ45×1

USB

1, for system maintenance

RS-232

Serial control

Alarm input/output

RJ45

RS-485

RJ45×4, for PTZ or keyboard control

Audio

External audio matrix unit

SD card

MCU board with SD card storage log

Keyboard

Standard keyboard

Power supply

DC-24V, Redundant hot backup

Consumption

<800W, 17 slot is full

Working temperature

0-55℃

Working humidity

<90% non-condensation

Matrix bay

Standard 19inch 12U bay

Dimension

482mm (width)×366mm(depth)×532.6mm(height)

Weight

<50KG
