ZW10-12XDG Series Outdoor High Voltage Dual Power Switch Device

Specifications

SPECIFICATION

      ZW10-12XDG/630-20 series high voltage dual power switch device is composed of a high vacuum circuit breakers and intelligent controller composed of two parts. Suitable for AC50/60Hz, rated voltage 12Kv, rated current up to 630A dual power supply system, all the way to the current when a power failure or under-voltage automatically switch to the other normal power supply, a reliable guarantee continuity of supply. Both short circuit and over current protection interlock function efectively avoids unnecessary re-load power failure impact. In the event of blackouts during the common power supply fails, switch device can complete with standby, power automatic switch, to ensure the reliability and security. Also can according to the needs of the load for the switching between the two power supplies.Particularly applicable to not allow the important place of power, as an important electrical control device to ensure continuous power supply. As a new generation of novel design, perfect in performance, safe and reliable high degree of automation, wide applicable scope of the vote since the replica dual power automatic switch products. Products are designed to ensure that the two way high voltage power supply is  completely isolated, at the same time with perfect mechanical and electric interlock in a reliable way, so it is of very high safety and reliability. The ZW10-12XDG is suitable for higher requirements for power supply reliability and safety of double power supply electric power users, as a dual power supply system of control and protection settings.

      ZW10-12XDG series high voltage dual power switch device are widely used in oil field mine metallurgy, chemical industry, railways, communications machinery and so on 10Kv distribution line, industrial and mining enterprises, 10Kv line.

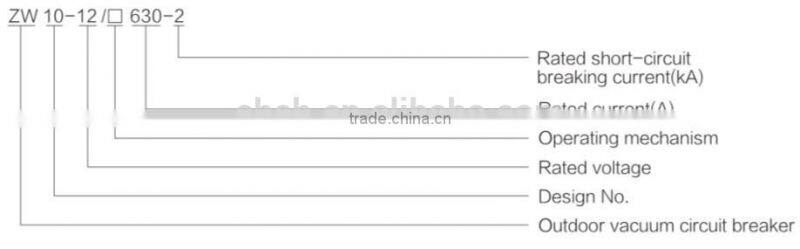

MODEL IMPLICATION

TECHNICAL SPECIFICATION
