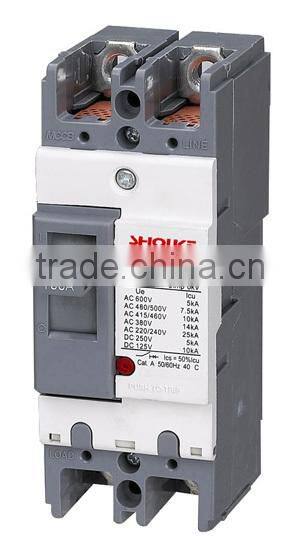

SKE Abe 102b Mccb Miniature Moulded Case Circuit Breaker
- NINGBO/SHANGHAI
 - T/T

You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHOUKE/CNCHELE | |
| Model Number | ABE102b | Type | Moulded Case | |
| Poles Number | 2 |
Product Description
ABE/ABS mccb is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V
ABE/ABS moulded case circuit breaker
Application
ABE/ABS moulded case circuit breakeris suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, undervoltage. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
Specifications
Type  | 2pole  | ABE-32b  | ABE-52b  | ABS-52b  | ABE-62b  | ABS-62b  |
3pole  | ABS-33b  | ABE-53b  | ABS-53b  | ABE-63b  | ABS-63b  | |
Frame size(AF)  | 30  | 50  | 60  | |||
Rated current(A)  | 5,10,15,20,30  | 5,10,15,20,30,40,50  | 60  | |||
Rated operational voltage(V)Ue (50/60Hz)  | 600  | 600  | 600  | 600  | 600  | |
Rated insulation voltage(V)Ui(50/60Hz)  | 690  | 690  | 690  | 900  | 900  | |
Rated impulse withstand voltage(KV)Uimp  | 6  | 6  | 6  | 6  | 6  | |
Uitimate breaking capacity (KA,Icu AC 50/60Hz)  | 220V/240V  | 10  | 10  | 25  | 10  | 25  |
380V  | 7.5/5  | 7.5/5  | 14/10  | 7.5/5  | 14/10  | |
415V  | 7.5/5  | 7.5/5  | 14/10  | 7.5/5  | 14/10  | |
440/460V  | 5  | 5  | 10  | 5  | 10  | |
480/500V  | 2.5  | 2.5  | 7.5  | 2.5  | 7.5  | |
600V  | 2.5  | 2.5  | 5  | 2.5  | 5  | |
Utilisation category  | A  | A  | A  | A  | A  | |
Endurance  | Mechanical  | 8500  | 8500  | 8500  | 8500  | 8500  |
Electrical  | 1500  | 1500  | 1500  | 1500  | 1500  | |
Type  | 2pole  | ABE-102b  | ABS-102b  | ABE-203b  | ABS-203b  | ABE-403b  | ABS-403b  | ||||||||
3pole  | ABE-103b  | ABS-103b  | |||||||||||||
Frame size(AF)  | 100  | 225  | 400  | ||||||||||||
Rated current(A)  | 5,10,15,20,30,40, 50,60,75,100  | 15,20,30,40,50, 60,75,100  | 100,125,150, 175,200,225  | 250,300, 350,400  | |||||||||||
Rated operational voltage(V)Ue (50/60Hz)  | 600  | 600  | 600  | 600  | 600  | 600  | |||||||||
Rated insulation voltage(V)Ui(50/60Hz)  | 690  | 690  | 690  | 690  | 690  | 690  | |||||||||

1.Custom services: As per cilent's demands, packing with general export carton and mark with
custom label.
2.Good after sales services: shipment and sample quality tracking includes lifetime, switch-on/off
times & maintenance. Any small problems happened in our circuit breaker will be solved at the
most prompt time. We always offer relative technical support/consultant. Quick response, all
your inquiry will be replied within 24 hours.
Workshop
Assemble
Warehouse
About Company
SHOUKE is a specialized manufacturer and exporter of various moulded case circuit breaker and other electric products. We also will supply good service to all customers with honest cooperation attitude and try our best to develop the process of automation.
Experience: we have 15 years experience of moulded case circuit breaker, and it is a name that stands for quality, durability, originality.
Market: Currently our produce and design are sold well in Southeast Asia and Middle East, also are trusted and praised deeply by domestic and foreign users.
What we offer:
1) Electric products: Various circuit breakers, relays, and other electrical accessories
2) Excellent quality, reliable services, reasonable prices and creating value for customers
Shipping terms &conditions
1. FAST SHIPPING from our China Factory!
2. Item shipped in 10-20 working days after payment is received depends on the quantity of the order.
3. Item shipped by UPS,FedEX,DHL and others, depending on size and weight of total order.
4. Item only shipped to address listed on the invoice; No responsible for shipping to wrong address.
5. Tracking number will be sent to you as soon as we ship the goods.
Trade Terms
1.Payment: 1)TT 2) L/C
2.Port of loading: Ningbo,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 10-20 days after receive full payment
