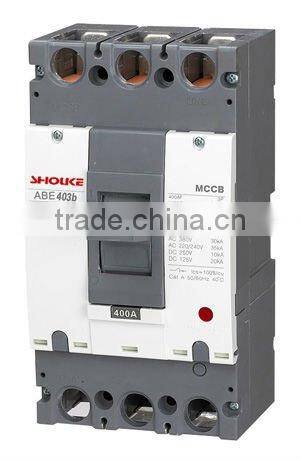

SKE Abe403b Mccb Molded Breaker Circuit Breaker

FOB Price

US$ 50 - 100 / Piece

10 Pieces(Min. Order)

Port NINGBO/SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	SHOUKE/CNCHELE
Model Number	ABE403b	Type	Moulded Case
Poles Number	3

Product Description

ABE/ABS mccb is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V

ABE/ABS moulded case circuit breaker

Application
ABE/ABS moulded case circuit breakeris suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, undervoltage. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

Specifications

Type	2pole	ABE-32b	ABE-52b	ABS-52b	ABE-62b	ABS-62b
Type	3pole	ABS-33b	ABE-53b	ABS-53b	ABE-63b	ABS-63b
Frame size(AF)		30	50		60
Rated current(A)		5,10,15,20,30	5,10,15,20,30,40,50		60
Rated operational voltage(V)Ue (50/60Hz)		600	600	600	600	600
Rated insulation voltage(V)Ui(50/60Hz)		690	690	690	900	900
Rated impulse withstand voltage(KV)Uimp		6	6	6	6	6
Uitimate breaking capacity (KA,Icu AC 50/60Hz)	220V/240V	10	10	25	10	25
	380V	7.5/5	7.5/5	14/10	7.5/5	14/10
	415V	7.5/5	7.5/5	14/10	7.5/5	14/10
	440/460V	5	5	10	5	10
	480/500V	2.5	2.5	7.5	2.5	7.5
	600V	2.5	2.5	5	2.5	5
Utilisation category		A	A	A	A	A
Endurance	Mechanical	8500	8500	8500	8500	8500
Endurance	Electrical	1500	1500	1500	1500	1500

Type	2pole	ABE-102b	ABS-102b		ABE-203b			ABS-203b					ABE-403b		ABS-403b
	3pole	ABE-103b	ABS-103b
Frame size(AF)		100				225				400
Rated current(A)		5,10,15,20,30,40, 50,60,75,100		15,20,30,40,50, 60,75,100			100,125,150, 175,200,225				250,300, 350,400
Rated operational voltage(V)Ue (50/60Hz)		600		600			600		600			600		600
Rated insulation voltage(V)Ui(50/60Hz)		690		690			690		690			690		690
