Home > Products > MCCB(Moulded Case Circuit Breaker) > SKP NF630-CP 630A Electrical Circuit Breaker Mccb

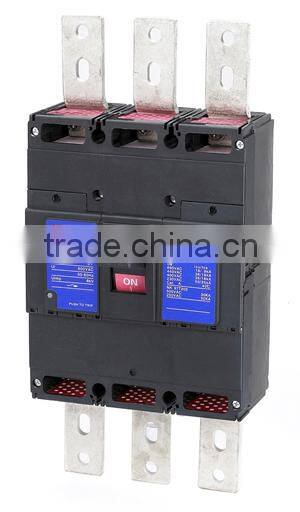

SKP NF630-CP 630A Electrical Circuit Breaker Mccb
- NINGBO/SHANGHAI
- T/T
You May Like
-
SKP NF400-CP 400A Switch Mccb Moulded Case Circuit Breaker
-
SKS NF CS Mccb Moulded Case Circuit Breaker
-
SKB BA57-35 Moulded Case Circuit Breaker MCCB Shouke Factory
-
SKN New Product ABN53C Mccb Moulded Case Circuit Breaker
-
New Product ABN203C Mccb Moulded Case Circuit Breaker
-
New Product Mccb Circuit Breaker ABN103c
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SHOUKE/CNCHELE | |
| Model Number | NF630-CP | Type | Moulded Case | |
| Poles Number | 3 |
Product Description
1,Application and range of application
The NF-CP series plastic outer covering type circuit breaker (hereafter refers to as circuit breaker), is this company uses the international advanced design, one of the technique of manufacture development, development new circuit breakers. Its fixed isolation voltage is 690V, is suitable in exchanges 50Hz, fixed working voltage 400V and below.Rated current to 800A circuit as frequent changeover gum less frequent motor starter. The Circuit breaker with overload, short circuit protection device, and less voltage protection circuit and power equipment are not damaged.
2,Technical parameter
Type | Number of poles | Rated current in(A) |
| |
| ||||
DC | AC | ||||||||
250V | 230V | 400V | 440V | 500V | |||||
NF50-CP | 2 | 5,10,15,20,30,40,50 | AC400(380) | 2.5/1 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | 0.45 |
3 | - | 0.65 | |||||||
NF60-CP | 2 | 50,60 | 2.5/1 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | 0.45 | |
3 | - | 0.65 | |||||||
NF100-CP | 2 | 50,60,75,100 | 7.5/4 | 25/13 | 10/5 | 10/5 | 7.5/4 | 0.70 | |
3 | - | 1.00 | |||||||
NF250-CP | 3 | 125,150,175,200,225,250 | - | 30/15 | 18/9 | 15/8 | 10/5 | 1.50 | |
NF400-CP | 3 | 250,300,350,400 | - | 35/25 | 25/18 | 25/18 | 15/10 | 5.5 | |
NF630-CP | 3 | 500,600,630 | - | 50/35 | 35/25 | 35/25 | 18/10 | 9.4 | |
