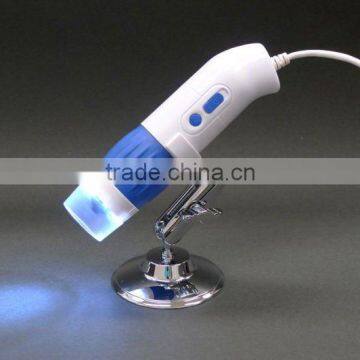

Measurement microscope 1.3M 200X

Place of Origin	Guangdong, China		Brand Name	oiTez
Model Number	DP-M07(P01)		Theory	Video Microscope
Drawtube	Monocular

Specifications

Measurement microscope, USB microcope , microscope camera
1.3M pixel, 200X Magnification
measurement function

     The Microscope is a fully functional magnification device which can easily be operated by plugging directly into your computer enabling you to magnify objects up to 10X-50X & 200x. Enhanced with adjustable light control wheel with 8 white LED lights and a 1.3MP PC camera, the Microscope can capture high quality images and videos (AVI).



 How to Measure

Opening a photo in measurement window by double-click on the picture scroll list. Click any measure option under ‘Measurement’ icon.

a. Line Measurement

The Line measurement allows you to measure from one point to the next. Simply click and drag to the desired length, and then click again to lock-in.



b. 45 Degrees’ Angle Line measurement

This function is for any 45 Degrees’ Angle Line angle measurement. Simply click and drag to extend out to the desired angle.



c. Continuous Line Measurement

The Continuous Line measurement allows you to measure any continuous desired length.

Simply click and drag from one point to other desired points, click again to lock-in.



d. Polygon Measurement

The Polygon Measurement allows you to measure the side-length, interior angle degree, circumference and area of the polygon.



e. Radius Circle Measurement

Simply click and extend out to the desired radius, the radius, circumference and area of the circle will show up accordingly.



f. Diameter Circle Measurement

Simply click and extend out to the desired diameter, the radius, circumference and area of the circle will show up accordingly.



g. Three Point Circle Measurement

Simply define any three points and click, the radius, circumference and area of a circle will show up accordingly.



h. Three Arc Measurement

Simply define any three points and click, the circumference of the arc as well as the radius and area of the sector will show up accordingly.



i. Angle Measurement

This function allows measurement of an angle. Simply click and drag to extend out to the desired angle.

j. Four Point Angle Measurement

Simply define any two points and click for the first line, and repeat the action to create the second line, the angle degree between two lines show up accordingly.



All the measurement result can save in pictures for further study and analysis or for other use as below

l       Copy pictures: Copy the pictures to any desired folder

l       Copy to clipboard: Copy the pictures to any desired documents.

l       Sending email: Sending out the picture via e-mail.

Specifications

Image Sensor	2.0Mega Pixels
Video Capture Resolution	1600 x 1200, 1280 x 960, 800 x 600, 640 x 480, 352 x 288, 320 x 240, 176 x 144, 160 x 120
Video Capture Format	AVI
Still Image Capture Resolution	3200 x 2400, 2560 x 2048, 2304 x 1728, 1600 x 1200, 1280 x 1024, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480
Still Image Capture Format	JPG, BMP
Focus Range	Manual Focus From 10mm to 500mm
Flicker Frequency	50Hz / 60Hz
Frame Rate	30fps@VGA
Magnification Rate	10~50X, 200X
Shutter Speed	1 sec. to 1/1000 sec.
White Balance	Auto
Exposure	Auto
Light Source	8 White LED
PC Interface	USB 2.0
Operation System	Windows XP / Vista / Windows 7
OSD Language	Multi-language
Power Supply	5V DC from USB Port
Size	38mm(D) x 142mm(L)
