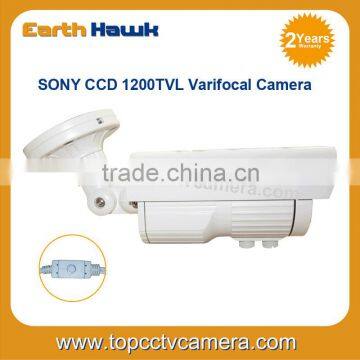

1/3 SONY 1200TVL CCTV Camea with varifocal lens OSD

FOB Price

USD $17.5 - $23 / Set

10 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Spec.:
cctv camera with varifocal lens OSD
*1/3" CMOS,720P, IR-CUT*2.8-12mm vari-focal Lens
*42pcs*D5 IR LED

Specifications

1/3 SONY CCD 1200TVL CCTV Camea with varifocal lens OSD

*1/3" CMOS,720P, IR-CUT, 2M Pixels Lens
*2.8-12mm vari-focal Lens
*42pcs*D5 IR leds,35m IR Distance
*ce,fcc,rohs

Image Sensor	1/4" Color CMOS	1/3" Color CMOS	1/3" Color CMOS	1/4" Color CMOS	1/3" Color CMOS	1/3 sony CCD	1/3 sony CCD	1/3 sony CCD
TV System	PAL/NTSC
Image Resolution	PAL:752(H)×582(V),	PAL:752(H)×582(V),	PAL:976(H)×582(V),	PAL:976(H)×582(V),	720P	PAL:976(H)×582(V),	PAL:976(H)×582(V),	PAL:976(H)×582(V),
Image Resolution	NTSC:768(H)×494(V)	NTSC:768(H)×494(V)	NTSC:976(H)×494(V)	NTSC:976(H)×494(V)	720P	NTSC:976(H)×494(V)	NTSC:976(H)×494(V)	NTSC:976(H)×494(V)
Horizontal Resolution	600TVL	600TVL	700TVL	800TVL	1000TVL	700TVL	700TVL	800TVL
Minimum illuminator	Color Model:0.003(0.6)lux(Sens-up OFF),B/W Model:0.0001(0.1)lux(Sens-up OFF)					0.01LUX/F1.2	0.01LUX/F1.2	0.01LUX/F1.2
S/N(Y Signal)	>58dB					>65dB(AGC OFF)
AES	1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)
WDR	—	—	—	—	—	D-WDR	D-WDR	D-WDR
DNR	—	—	—	—	—	2D-DNR	2D-DNR	2D-DNR
OSD	—	—	—	—	—	OSD	OSD	OSD
White Balance	ATW/AWC/Manual/Outdoor(1,800°K~10,500°K)Indoor(4,500°K~8,500°K)
AGC	AUTO					Auto/Manual/Off
BLC	ON					ON/OFF
Gamma Adjusting	0.45
synchronization System	Internal Synchronization
Video Output	1.0Vp-p,75Ω
Voltage	DC12V (9V ~ 15V)
Operating Enviroment	-20°C~60°C / 10% ~ 95%RH
