Home > Products > Other > 9" 4-Split LCD Rear View Reverse Camera Video System For School Bus, Trucks Farm

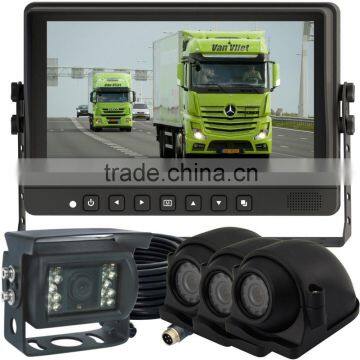

9" 4-Split LCD Rear View Reverse Camera Video System For School Bus, Trucks Farm
USD $78 - $95
/ Unit
1 Unit(Min.Order)
- 100000 Unit / Units per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | earthhawk | |
| Model Number | EK-CKIT002 | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Infrared | Special Features | Vandal-proof |
Product Description
We offer Rear View Back up Camera System, Reversing Camera System, TFT LCD Monitor, Auto Shutter Camera and CCTV Camera for Car, Heavy Truck, Trailer, SUV, Farm Tractor, Forklift, Compactor Vehicle, Street Sweeper, Mobile Home, Passenger Bus and Mining Vehicle.
All of our products have a Warranty for a period of twelve months from the date of purchase.
Tests were approved for our products:
1: Load Dump(disconnection of a powered load);
2: ESD (Electrostatic discharge);
3: IP69K Waterproof and Dust-proof Test(Include DUST and NOZZLE WATER SPRAY TEST);
All of our products have a Warranty for a period of twelve months from the date of purchase.
Tests were approved for our products:
1: Load Dump(disconnection of a powered load);
2: ESD (Electrostatic discharge);
3: IP69K Waterproof and Dust-proof Test(Include DUST and NOZZLE WATER SPRAY TEST);
[Feature:]
| 9 inches Digital Screen TFT LCD Quad Monitor(Model:EK-CKIT002) |
| 9"Digital Screen TFT LCD Quad Monitor with Sun Visor |
| Single View/Split View/Three View/Quad imag View Selectable |
| OSD MENU Separately Set Each Camera Trigger Priority |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s |
| OSD MENU Separately Set Each Camera Mirror/Normal image |
| Application USA Techwell Automotive Digital Video Processor |
| 1 Cable Solution System Make It Easy For Users To Install and Use The Device In Any Places |
| Color System:PAL/NTSC (AUTO) |
| Display Resolution: 2400(H) X 480(V) dot |
| Support Four Camera Inputs:1.0Vp-p75Ω |
| Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 |
| Brightness (cd/m2): 400 ( Automatically Adjust Environment by According) |
| Contrast ratio: 500:1 |
| Back-light:Single LED |
| Operating temperature: -20℃ to +70℃ |
| Storage temperature: -30℃ to +80℃ |
| Load Dump: DC14+87V(Td400mS) 5pulses |
| Free Operating Voltage: DC11-32V (System Power Max 20W) |
| External dimensions: (L x W x T) (234 x158 x 81mm) with mounting Sun Visor |
| Weight Approx: 479g |
| Aluminum Shell Waterproof IR Color Camera(MODEL:DF-4103*1) |
| Image Type: 1/3 inch Color CCD |
| Horizontal Resolution:420TV Lines |
| Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V) |
| Usable Illumination : 0Lux ( Built in 15pcs IR for Picture Support in the Dark) |
| Free viewing angle: 130° |
| 100% Waterproof: IP69K Rating |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Power supply:DC12V from Reversing Monitor |
| Dimensions: 69(W) x 43(H) x 38(D) mm (without mounting) |
| Aluminum Shell Waterproof IR Side Top Camera(MODEL:DF-8033*3) |
| Image Type: 1/3 Color CCD |
| Resolution:420TV |
| Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V) |
| Usable Illumination : 0Lux( Built in 10pcs IR LED’s for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Power supply:DC12V (from Reversing Monitor) |
| Dimensions: 74(W) x 49(H) x 57(D) mm (without mounting) |
How to install:
1. Install the bracket;
2. Install the bracket on the monitor; (Firstly loose the screw in the middle of the bracket, Secondly insert the bracket into the back of monitor, then drive the screw tight)
3, Connect the system;
*connect the split cable to the monitor;
*After connect well, connect the two Reverse signal cable CAM1 and CAM2 to the same reverse power of your car. Then install the monitor in a proper position in your cab;
4, Now install the camera;
*First, install the bracket of the camera. Then install the camera behind your car. You need to make a hole to fix the camera, and make another hole to let the cable get through.
5. Install the camera well, and now connect the cables;
6. Last, connect the cigarette lighter adapter to the DC connector, and insert it to the car cigarette lighter, Installation completed.
1. Install the bracket;
2. Install the bracket on the monitor; (Firstly loose the screw in the middle of the bracket, Secondly insert the bracket into the back of monitor, then drive the screw tight)
3, Connect the system;
*connect the split cable to the monitor;
*After connect well, connect the two Reverse signal cable CAM1 and CAM2 to the same reverse power of your car. Then install the monitor in a proper position in your cab;
4, Now install the camera;
*First, install the bracket of the camera. Then install the camera behind your car. You need to make a hole to fix the camera, and make another hole to let the cable get through.
5. Install the camera well, and now connect the cables;
6. Last, connect the cigarette lighter adapter to the DC connector, and insert it to the car cigarette lighter, Installation completed.
