Home > Products > Single phase energy meter > Single Phase Electric GSM Meter
Single Phase Electric GSM Meter
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL | |
| Model Number | D129013 | Display Type | Digital Only | |
| Phase | Single Phase | Measuring Energy Range | 5(20)A, 10(40)A, 20(80)A | |
| Accuracy Class | 1.0, 2.0 | Output Voltage | 110V, 220V | |
| Operating Temperature | -30-70℃ | Dimensions | 105.99*202.16*55mm |
Product Description
Single Phase Electric GSM Meter
As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
| 1.Product Details | |||
| Product Name | Single Phase Electric GSM Meter | ||
| Installation type | Front-mounted | ||
| Module No. | D129013 (Electric GSM Meter) | ||
| Brand | YTL (Electric GSM Meter) | ||
| Rated Current | 5(20)A, 10(40)A, 20(80)A | ||
| Reference Voltage | 240V | ||
| Frequence | 50-60Hz | ||
| Display Mode | LCD | ||
| Accuracy | 0.5 | ||
| Impulse Constant | 1600imp/kWh | ||
| Start Current | 0.004Ib | ||
| Connection Mode | direct mode | ||
| Communication& | GSM | ||
| Protocol | |||
| Power Consumption | IEC standard | ||
| Material of meter case | PC | ||
| Size | 105.99*202.16*55mm | ||
| Certificate | CE ISO9001 | ||
| Standard | IEC62052-11, IEC62053-21 | ||
| 2.Functions and characteristic | |||
| A.Measuring total energy consumption,support both active and reactive energy measurement. | |||
| B.Meter with inside relay which will disconnect when tampering happened. | |||
| C.LCD display show current directions, total kWh,meter No., relay status, meter terminal cover open record and low battery indication. | |||
| D.SMS activated OPEN / CLOSE relay to control power supply | |||
| E.It has LCD display even power failed with power back-up | |||
| F.With Anti-tamper features, such as Self-grounding & reverse connection can detect and send SMS to central office but still register the electric consumption of a tampered meter; | |||

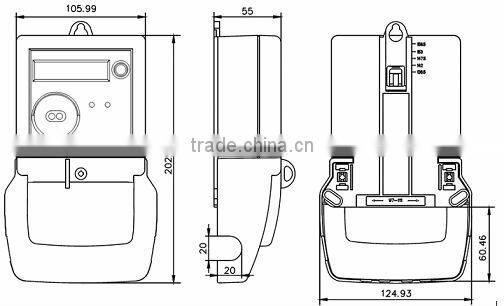

| 3.Outer and mount dimension: | |||
 | |||

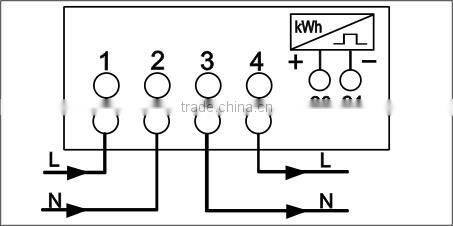

| 4.Wiring diagram: | |||
| | |||
| 5.Transaction Information | |||
| MOQ | 500pcs | ||
| Sea Port | Shanghai | ||
| Payment Terms | TT LC | ||
| Supply Ability | 500,000pcs per month | ||
| Delivery time | 20-25 days | ||
| Normal Package | White box or color box for Electric GSM meter | ||
If you are interested in our single phase electric GSM meter, pls be free to contact us at any time.
