single phase electronic meter
- 500000 Unit / Units per Month
- shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL | |
| Model Number | D125012 | Display Type | Digital Only | |
| Phase | Single Phase | Measuring Energy Range | 10(60)A | |
| Accuracy Class | 1.0 | Output Voltage | 220V | |
| Operating Temperature | -30-55℃ | Dimensions | 106*60*215mm |
Product Description
single phase active electronic meter
As a professional manufacturer, YTL designs and produces four tariff meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of four tariff meter, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Single phase active anti-tamper electronic meter | |
Installation type | Suspension type | |
Module No. | D125012 ( active electronic meter ) | |
Brand | YTL ( active electronic meter ) | |
Rated Current | 10(60)A | |
Reference Voltage | 220V | |
Frequence | 50HZ | |
Display Mode | LCD 6+2 | |
Accuracy | 1.0 | |
Impulse Constant | 1600imp/kWh | |
Start Current | 0.4%Ib | |
Connection Mode | CT type, Direct type | |
Communication& Protocol | / | |
Power Consumption | ≤0.6W, ≤0.3VA | |
Material of meter case | ABS | |
Size | 215´106´60mm | |
Certificate | ISO9001,CE | |
Standard | IEC62052-11,IEC62053-21 | |
2.Functions and characteristic | ||
A. Active electricity measuring, without adjust under long-time work. | ||
B. Prevent reverse tamper and indication. | ||
C. Wide work temperature range: -30—55°C | ||

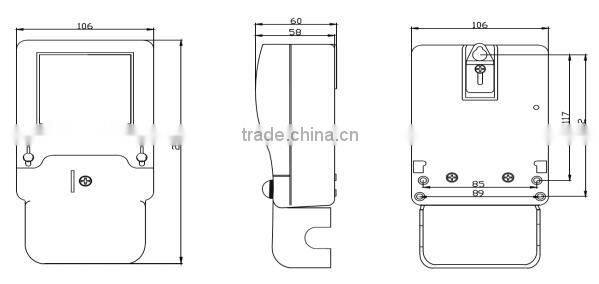

3.Outer and mount dimension: | ||
 | ||
4.Wiring diagram: | ||
| ||
5.Transaction Information | ||
MOQ | 500pcs | |
Sealing Port | Shanghai | |
Payment Terms | T/T,L/C | |
Supply Ability | 50000/Month | |
Delivery time | 25 days after receive prepayment | |
Normal Package | white paper box with anti-tamper electronic meter | |
