Single Phase Electric Meter
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL, YTL (or OEM) | |
| Model Number | D122003, DDS-1Y (eectric meter) | Display Type | Digital Only | |
| Phase | Three Phase | Measuring Energy Range | 5(50)A 5(80)A 10(80)A, 5(30)A, 10(40)A, 20(80)A, 10(100)A | |
| Accuracy Class | 1.0, 2.0, 1.0 2.0 | Output Voltage | 220V, 230V, 220V, 230V | |
| Operating Temperature | -20~50℃, -20~50 | Dimensions | 150*106*60mm |
Product Description
As a professional manufacturer, YTL designs and produces electric meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications
YTL is devoted to develop and design all types of electric meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Single Phase electric meter | |
Installation type | Suspension | |
Module No. | D122003 ( electric meter ) | |
Brand | YTL ( electric meter ) | |
Rated Current | 1.5(6)A 2.5(10)A 5(10)A 5(20)A 5(30)A 10(40)A 15(60)A 20(80)A | |
Reference Voltage | 110V;220V | |
Frequence | 50/60HZ | |
Display Mode | LCD | |
Accuracy | 1.0 | |
Impulse Constant | 1600/3200imp/kWh | |
Start Current | 0.004lb | |
Connection Mode | Direct mode | |
Communication& Protocol | / | |
Power Consumption | ≤1.0W | |
Material of meter case | PC | |
Size | 150*106*60mm | |
Certificate | CE ISO | |
Standard | IEC62052-11/62053-21 | |
2.Functions and characteristic | ||
A. Active energy measurement and calculation recorded by period: 4tariffs, 8time segments, 2 time zones. | ||
B. Infrared port: connecting with portable computer through infrared port, information can be transferred and recorded; | ||
C. Rotary display of parameters: parameters and time intervals can be pre-set; the order of parameters can be set at random. | ||
D Functions of forbidding programming and removing data. | ||

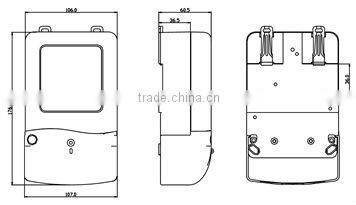

3.Outer and mount dimension: | ||
 | ||

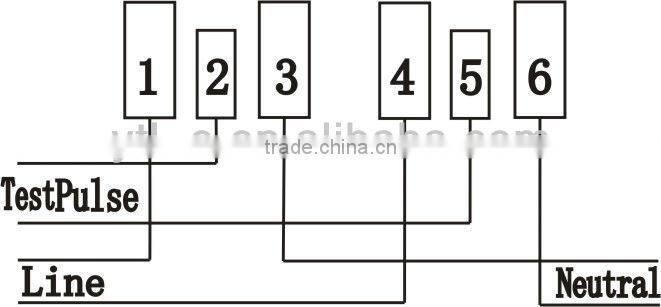

4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ | 500pcs | |
Sea Port | Shanghai | |
Payment Terms | TT prepayment | |
Supply Ability | 500,000pcs per month | |
Delivery time | 20-25 days | |
Normal Package | white box or colorful box for single phase electric meter | |
If you are interested in single phase electirc meter, pls feel free to contact us at any time.
