Single Phase China prepayment meter
- 500000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YTL | |
| Model Number | D124005 | Display Type | Digital Only | |
| Phase | Single Phase | Measuring Energy Range | 5(20)A, 10(40)A, 20(80)A | |
| Accuracy Class | 1.0, 2.0 | Output Voltage | 110V, 220V | |
| Operating Temperature | -20~70℃ | Dimensions | 166*109*62 |
Product Description
Single Phase China prepayment meter
As a professional manufacturer, YTL designs and produces electronic energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications
YTL is devoted to develop and design all types of electronic energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details | ||
Product Name | Single Phase China prepayment meter | |
Installation type | suspension type | |
Module No. | D124005 (China prepayment meter) | |
Brand | YTL (China prepayment meter) | |
Rated Current | 10(60)A | |
Reference Voltage | 230V | |
Frequence | 50-60Hz | |
Display Mode | LCD | |
Accuracy | 1.0 | |
Impulse Constant | 1600imp/kWh | |
Start Current | 0.004Ib | |
Connection Mode | direct mode | |
Communication& Protocol | RS485 (IEC1107-A) ,IR | |
Power Consumption | Less than 1.0W; Less than 0.3VA | |
Material of meter case | PC | |
Size | 166*109*62mm | |
Certificate | CE | |
Standard | IEC61036-2000; IEC62055-31 | |
2.Functions and characteristic | ||
A. Unique or different cards are used for each user while computer system is adopted to ensure its excellent counterfeit-proof function when power can only be consumed after paid. | ||
B. Pulse testing output can be applied to the collection reading system. | ||
C. Maximum load is limited and IC card is used to transfer data when users pre-paid for the power. | ||
D. Automatically or manually cut off the power and overloaded and overdraft is allowed. | ||

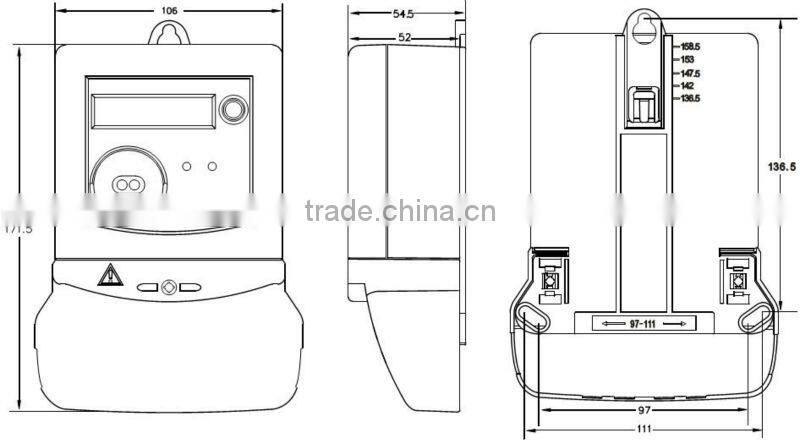

3.Outer and mount dimension: | ||
 | ||

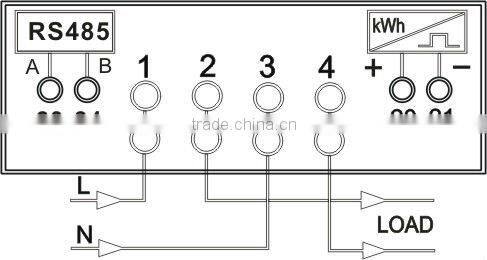

4.Wiring diagram: | ||
| | ||
5.Transaction Information | ||
MOQ | 500pcs | |
Sea Port | Shanghai | |
Payment Terms | TT prepayment | |
Supply Ability | 50,000pcs per month | |
Delivery time | 25 days | |
Normal Package | white or colorful box for China prepayment meter | |
If you are interested in our single phase China prepayment meter, pls be free to contact us at any time.
