rfid smart label

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	6M Long range uhf reader with RJ45 interface
Model Number	UHF-105 6M Long range uhf reader with RJ45 interface

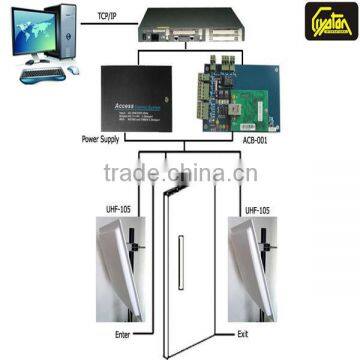

915MHz UHF RFID Long Range Card Reader

Wiegand 26

TCP/IP ( RJ45 )

RS232 communication

UHF Sticker , UHF Cards support do OEM & ODM .

FREE Software and SDK included.

I. 5Meter Long Range Proximity Reader - Application:

1	Logistics and Warehouse management;
2	Parking control system;
3	Manufacturing management;
4	Products anti-counterfeiting detection;
5	Other field: club management,library,student schoolrolls, attendence management and swimming pool system etc.

II. Long Range Proximity RFID UHF Reader - Specification

Working Frequency	Nationalstandard(920~925MHz), America standard (902~928MHz),or customize other frequency
Support Protocol	ISO18000-6B,ISO18000-6C(EPC GEN2)
Frequency Hopping	FHSS or fixed frequency set by software
Working Way	automatically reading card at regular time,can set reading card way.
Frequency Power	0~30dBm,be adjusted by software
Reading Distance	1~5M
Reading Sensitivity	dual polarization reading
Reading Speed	one label 64 bit ID number < 6ms
Antenna	build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna,gain 12dBi
Interface	RS485,RS232,Wiegand26,Wiegand34,RJ45
Working Voltage	DC+12V
Working Status Indication	buzzer
Power	1W
Working Temperature	-20°C ~ +80°C
Storage Temperature	-40°C ~ +125°C
Working Humidity	20% ~ 95%(no condensing)
Dimension	227mm× 227mm× 60mm

III. Long Range Proximity Reader - Signal Definition:

Port	Cable Color	Function
DC+12V	Red	+9V~15V positive
GND	black	Negative
TXD	brown	RS232 signal output (PIN2)
RXD	Yellow	RS232 signal input (PIN3)
GND	Blue	RS232 grounding (PIN5)
Triger	Gray	Trig pin
DATA0/485A+	Green	Wiegand data 0 or 485 interface positive port
DATA1/485B-	white	Wiegand data 1 or or 485 interface negative port

IV. UHF RFID Long Range Proximity Reader - Picture Show

V. Long Range Proximity UHF RFID Reader other Accessories

VI. Software for Long Range Proximity Reader UHF RFID Card

VII. Metal Anti-Interference RFID Sticker Card Window for UHF RFID Long Range Reader

Model	UHF-27
size	(L)243X(W)22X(H)10±0.2mm
manufacturer chip	Alien/higgs3
standard	ISO/IEC 18000-6C,EPC Class1 Gen2
storage	64 bits
applied frequency	860~960MHz
work mode	without power supply
useful life	100,000 write times,data keeping for 10years
stable range	15Meter(work with UHF-115,UHF-105 )
applied occasions	vehicle management,ect.
