Product Details

Place of Origin	Guangdong, China		Brand Name	6M Long range uhf reader with RJ45 interface
Model Number	UHF-105 6M Long range uhf reader with RJ45 interface

915MHz UHF RFID Long Range Card Reader

Wiegand 26

TCP/IP ( RJ45 )

RS232 communication

UHF Sticker , UHF Cards support do OEM & ODM .

FREE Software and SDK included.

I. 5Meter Long Range Proximity Reader - Application:

1	Logistics and Warehouse management;
2	Parking control system;
3	Manufacturing management;
4	Products anti-counterfeiting detection;
5	Other field: club management,library,student schoolrolls, attendence management and swimming pool system etc.

II. Long Range Proximity RFID UHF Reader - Specification

Working Frequency	Nationalstandard(920~925MHz), America standard (902~928MHz),or customize other frequency
Support Protocol	ISO18000-6B,ISO18000-6C(EPC GEN2)
Frequency Hopping	FHSS or fixed frequency set by software
Working Way	automatically reading card at regular time,can set reading card way.
Frequency Power	0~30dBm,be adjusted by software
Reading Distance	1~5M
Reading Sensitivity	dual polarization reading
Reading Speed	one label 64 bit ID number < 6ms
Antenna	build-in circular polarization antenna, gain 8dB /build-in linear polarization antenna,gain 12dBi
Interface	RS485,RS232,Wiegand26,Wiegand34,RJ45
Working Voltage	DC+12V
Working Status Indication	buzzer
Power	1W
Working Temperature	-20°C ~ +80°C
Storage Temperature	-40°C ~ +125°C
Working Humidity	20% ~ 95%(no condensing)
Dimension	227mm× 227mm× 60mm

III. Long Range Proximity Reader - Signal Definition:

Port	Cable Color	Function
DC+12V	Red	+9V~15V positive
GND	black	Negative
TXD	brown	RS232 signal output (PIN2)
RXD	Yellow	RS232 signal input (PIN3)
GND	Blue	RS232 grounding (PIN5)
Triger	Gray	Trig pin
DATA0/485A+	Green	Wiegand data 0 or 485 interface positive port
DATA1/485B-	white	Wiegand data 1 or or 485 interface negative port

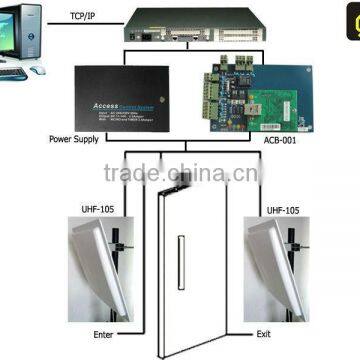

IV. UHF RFID Long Range Proximity Reader - Picture Show

V. Long Range Proximity UHF RFID Reader other Accessories

VI. Software for Long Range Proximity Reader UHF RFID Card

VII. Metal Anti-Interference RFID Sticker Card Window for UHF RFID Long Range Reader

Model	UHF-27
size	(L)243X(W)22X(H)10±0.2mm
manufacturer chip	Alien/higgs3
standard	ISO/IEC 18000-6C,EPC Class1 Gen2
storage	64 bits
applied frequency	860~960MHz
work mode	without power supply
useful life	100,000 write times,data keeping for 10years
stable range	15Meter(work with UHF-115,UHF-105 )
applied occasions	vehicle management,ect.
