850-840 Trade Assurance Customized Double Steel Tile Roll Forming Machine
- 20 Set / Sets per Month
- XINGANG TIANJIN
- T/T Credit Card
You May Like
-
XH1075-1080 Widely Used Trade Assurance Double Layer Roof Panel Roll Forming Machine
-
XH860-900 Widely Used Trade Assurance Double Layer Roof Panel Roll Forming Machine
-
820-860 Widely Used Trade Assurance Double Layer Roof Panel Roll Forming Machine
-
828-910 Widely Used Trade Assurance Double Layer Roof Panel Roll Forming Machine
-
XH828-900 Widely Used Trade Assurance Double Layer Roof Panel Roll Forming Machine
-
XH850-900 Widely Used Trade Assurance Double Layer Roof Panel Roll Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Roof | |
| Production Capacity | 10-15m/min | Place of Origin | Hebei, China | |
| Brand Name | XINGHE | Model Number | 850-840 | |
| Power(W) | 5.5kw | Voltage | 380V 50-60Hz | |
| Dimension(L*W*H) | 6500*1400*1500mm | Weight | 3.5 Tons | |
| Certification | BV | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Trade Assurance Double Decking Corrugated Iron Roofing Sheet Roll Forming Machine
Main Specification | ||
Double deck steel tile roll forming machine | ||
1 | Main frame | 300mm H-sections |
2 | Side board thickness | 16mm |
3 | Main motor power | 5.5kw |
4 | Power supply | 380V 50-60Hz |
5 | Shaft number | 10 rows for 850 corrugated steel tile |
11 rows for 840 steel tile | ||
6 | Shaft material | Carbon steel 45# |
7 | Shaft diameter | 70mm |
8 | Rolling wheel material | Carbon steel 45# with chrome plated |
9 | Cutting method | Hydraulic mould cutting |
10 | Hydraulic pump motor power | 3kw |
11 | Cutter material | Cr12 |
12 | Chain size | 1 inch |
13 | Control system | PLC Delta inverter |
14 | Production rate | 10-15m/min |
15 | Feeding thickness | 0.3-0.8mm |
16 | Feeding width | 1000mm/1250mm |
17 | Finished specification | 850 corrugated steel tiles |
840 steel tiles | ||
18 | Overall size | 6500*1400*1500mm |
19 | Total weight | About 3.5 Tons |
*Parameters above is the standard configuration *Parameters can be designed as per your special requests. | ||
Major Component & Production Process | ||
Major Components | Manual uncoiler | 1 set |
Main roll forming machine | 1 set | |
Hydraulic Cutting off system | 1 set | |
Control system(PLC) | 1 set | |
Output shelf | 1 set | |
Production Process | Uncoiler → Roll forming → Cutting off → Output | |
Formed Tile Profile |

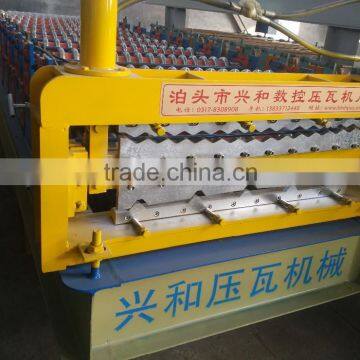

Machine Photos |
Loading Container |
Package & Payment & Delivery | ||
1 | Package details | Nude fasten up in container or under your requests |
2 | Payment terms | 30% TT for deposit balance against copy of B/L 100% L/C at sight |
3 | Delivery time | Within 30 days after receipt deposit |
4 | Port of shipment | XINGANG TIANJIN |
Our Service | |
1 | One-year quality warranty for all the machine |
2 | Technical staff available to service machine overseas |
3 | Permanent free for technical support |
4 | Design and produce according to your sample or drawing |
