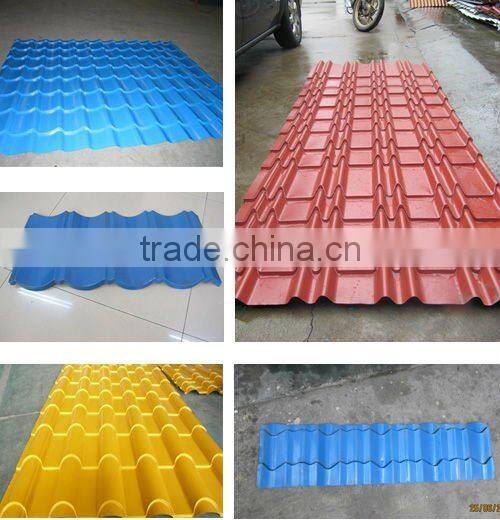

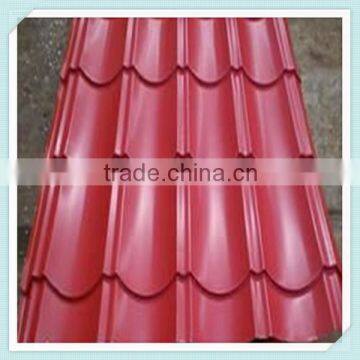

1035 Glazed Tile Machine/panel Glazed Tile Roll Forming Machine for Steel c/ Glazed Tile Making Machine

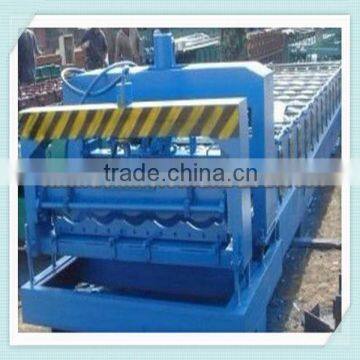

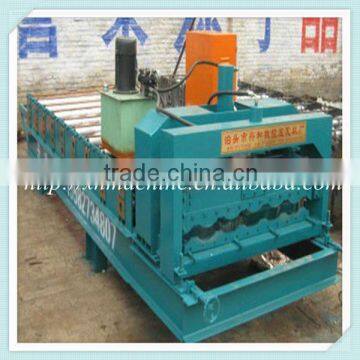

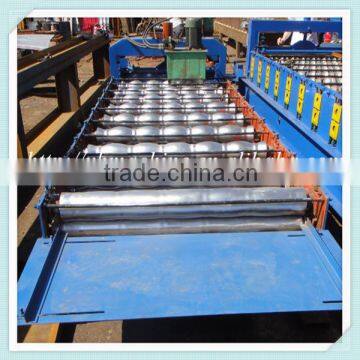

XH1035 glazed tile cold roll forming machine

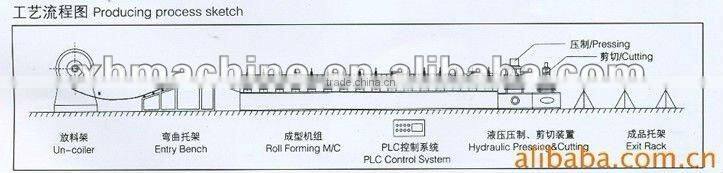

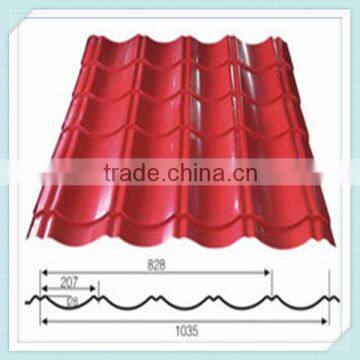

ducing process sketch

2.equipment technical parameter:

 1, the whole appearance: 5500mm * 1500mm * 1200mm.

 2, Machine weight: weighs about 3.5 tons.

 3, main power: 4KW.

 4, wall-type structure: wall thickness of 14mm.

 5, sprocket chain drive (6 points chain).

 6, spindle: Material 45 #, shaft diameter 70mm.

 7, Roll: Material 45 #, NC, after finishing a hard chrome plating.

 8, roll axes: a 10-week flow-forming.

 9, large frame: 300mmH steel welding completed.

 10, rolling thickness: 0.3mm-0.8mm.

 11, feeding speed :6-8m / min.

 12, computer-controlled fixed-length pressure-type, shear, and number of sheets.

 13, hydraulic pump station 1 units, motor power 4KW.

 14, pressure type, Shears modes: fully automatic hydraulic pressure type, Shears.

 15, pressure-type mold, Shears are used CR12 steel mold, pressure mold quenching and tempering treatment, Shears die quenched.

 16, electrical control system uses Mitsubishi Electric controllers.

3.Products warranty:

One year limit warranty .we will provide the thchnical support for the whole life.

Machine Feature:

1.Precise forming

2. High-solid forming stand guarantees the goods and uniform high quality of final produced

3. The operation automatically minimizes the tolerance of cutting length

4.Machine with Draw knife that can make the last board without manual cutting and clutch,That can control the number plate.

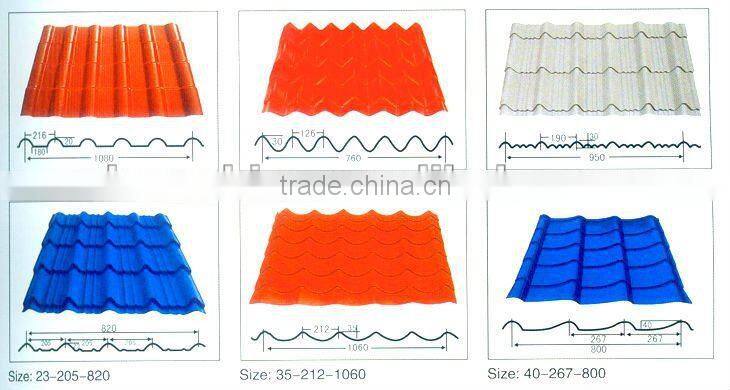

1. Does one machine can only produce one style panel profile?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need

your machines running in order to keep your business running.

3. How to visit your company?

a.Fly to Beijing airport:   By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick

up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then

we can pick up you.

4. What can you do if the machine broken?

Our machine's warranty period is 12months,if the broken parts can't repair,we can    send the new parts replace the broken parts freely,but you need pay the express cost   yourself.if after warranty period,we can

through negotiation for to solve the problems,and we supply the technical support for the whole life of the

equipment.

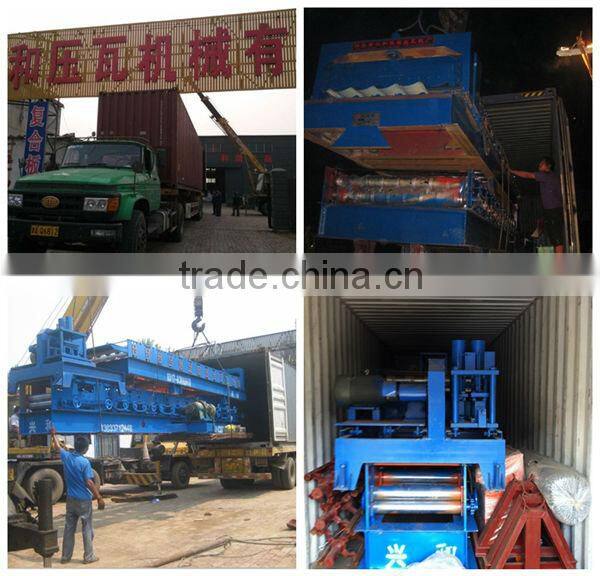

5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting

various types of cold roll forming machines.

7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on

developing how to make machines much more automatic, accurate and high quality. We can make sure
