Trade Assurance Half Round Water Steel Rain Gutter Roll Forming Machine Water Gutter Roll Forming Machine
- XINGANG TIANJIN
- T/T
You May Like
-
Downpipe Metal Roofing Sheet Roll Forming Machine
-
Downpipe High Efficient Hydraulic Roof Sheet Tile Roll Forming Machine
-
2015 Hot Sales Steel Pipe Rolling Machine Forming Downspouts Pakistan
-
Downpipe Downspout Roll Forming Machine for Roofing House Construction
-
Ethiopia Downpipe Downspout Roll Forming Machine
-
Portable Downpipe Downspout Forming Machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Steel | Use | Other | |
| Production Capacity | 6-8m/min | Place of Origin | Hebei, China | |
| Brand Name | XINGHE | Model Number | Downpipe | |
| Power(W) | 5.5KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 6.5*1*1.2M | Weight | 3.5T | |
| Certification | BV | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Downpipe roll forming machine
1.Steady performance
2.Longtime usage
3.Easy operation and maintaince
Rain Downpipe Downspout Rolling Forming Machine Automatic Machine
Working process

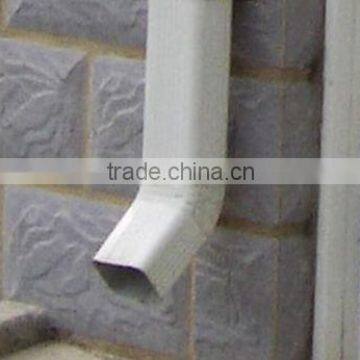

Tile drawing
Machine parameter
Main parameters for down pipe forming machine:
1. Raw material spec: 0.4-0.6mm
2. Main motor power: 5.5kw
3. Reducer:BWD22-35-4KW
4. Forming speed: 0-10m/min
5. Number of forming steps:14 rows
6. Material of roller: high grade 45# steel(plated chrome on surface)
7. Type of cutting: roll forming and then mold cutting
8 .achine Dimension: 6.5*1*1.2m
9.Chain: 1.2 Inches

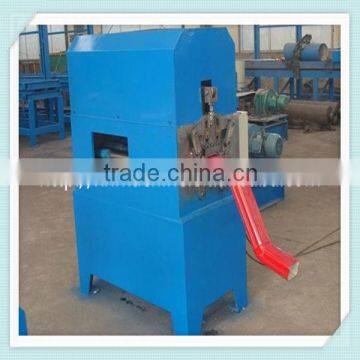

Main parameters for down pipe curving machine:
1. Type of controlling: adopt strong electric controlling
2. Main motor power:3.0kw
3. Max curving angle: 900
4. Functions: curving and biting
5. Curving speed: 20-25m/min
6. Dimension: 1300*650*1500mm
Components:
1.5 Tons Mannual decoiler: one set
2.Feeding station: one set.
Function and feature: put the raw material (steel plate) on the plat to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

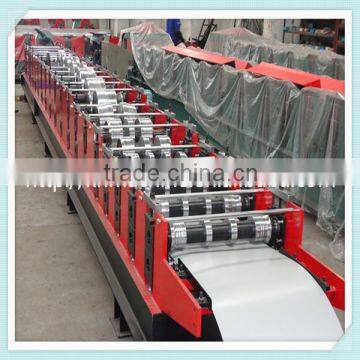

3.Main Roll Forming machine: one set
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard planting, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Rolling galvanization thickness: 0.05 mm
Rolling material: Forging Steel 45#
4.Hydraulic station: one set
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Hydraulic oil: 40#
5.Automatic cutting:one set
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
It contains one set of cutting tools, one hydraulic tank
Material of the cutting blade: Gcr12
6.Computer controller: one set
It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision: within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
PLC
Transducer
The seller should provide Chinese and English language screen.

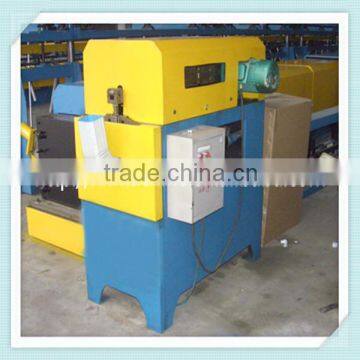

Machine shows
Other tiles for choice
Company shows
At present, our product have been sold to more than 30 cities home and abroad, achieving
good reputation.Backed with the powerful technology and perfect market service system,
and globalization, we have expanded our international market step by step. Opportunities
accompanying with challenges, but we are always full of confidence! All of our Xinghe staff
are waiting for you heart and soul.
