Home power for computer UPS 110/220v UPS

Specifications

G- All our products are designed to meet different international standards and clients' specified requests. They are widely used in different fields, including electric power, telecom,  and other entities at home and abroad.

es.

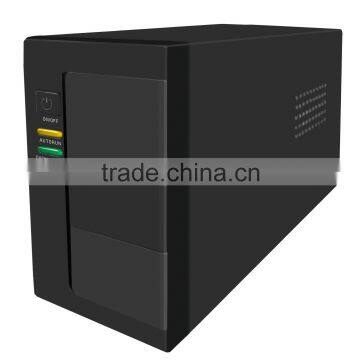

G-UPR Series for Line Interactive UPS

G-UPR is a line interactive UPS with Energy Saving Technology. Eliminates charges “ghost” of equipment when they don´t need energy. All models, 500VA, 750VA and 900VA have 6 shots, 3 green (ECO), 2 for router and modem (black) and 1 Bypass (yellow). The factory default programmed environmental function but has selector switches to normal function.

Main Features:

• CPU control
• 1, 2 or 3 step AVR
• Wide input voltage range
• Protection against High and low voltage
• Overload and short circuit protection
• Cold start
• Smart battery charger
• Monitoring software (Optional)
• Communication port USB or RS232 (Optional)
• Available with any kind on plug or receptacle.
• Surge suppressor
• Auto restart while AC recovery.

• Model #	G-UPR506	G-UPR756	G-UPR906
  Capacity	500VA/300W	750VA/420W	900VA/500W
  Input voltage range	90-147VAC	90-147VAC	90-147VAC
  Output voltage range	120±12%	120±12%	120±12%
  Output frequency	60HZ	60HZ	60HZ
  Transfer time	10ms
  Capacity & quantity of battery	1 pc*12V 4.5Ah	1 pc*12V 7.5Ah	1 pc*12V 9Ah
  Charging period	10-16  hours
  Backup time	10minutes	20minutes	30minutes
  Transformer size & material	76*38Pure Aluminum	86*38 Pure Aluminum	86*38 Pure Aluminum
  RJ45/11	YES	YES	YES
  Outlets NEMA 5-15	3 ECO outlets,                 2 Router/ Modem outlets, 1 bypass outle
  RS232 or USB interface	No	No	Optional
  RS232 or USB software CD & cable	No	No	Optional
  Load sensing	No	No	Optional
  Automatic charging (offline charging)	No	No	Yes
  Battery low voltage protection	Yes	Yes	Yes
  Overload & Short circuit protection	Yes	Yes	Yes
  Product dimension (mm)	260*85	305*85	305*85
  	*140	*140	*140
  Color box dimension (mm)	315*130	365*130	365*130
  	*210	*210	*210
  Master box dimension (mm)	330*275	380*278	380*278
  	*438	*440	*440
  Pcs in one master carton	4	4	4
  Gross weight (1pc, kgs)	4.6	5.5	5.8
  Net weight (1pc, kgs)	4.3	5.1	5.4
  Loading capacity (20' ctrn)	2720  Pcs	2240 / Pcs	2240 / Pcs
  Loading capacity (40' GP)	5600 Pcs	4800 / Pcs	4800 / Pcs
  Warranty spare parts	1% finished units or other spares equal to this value
