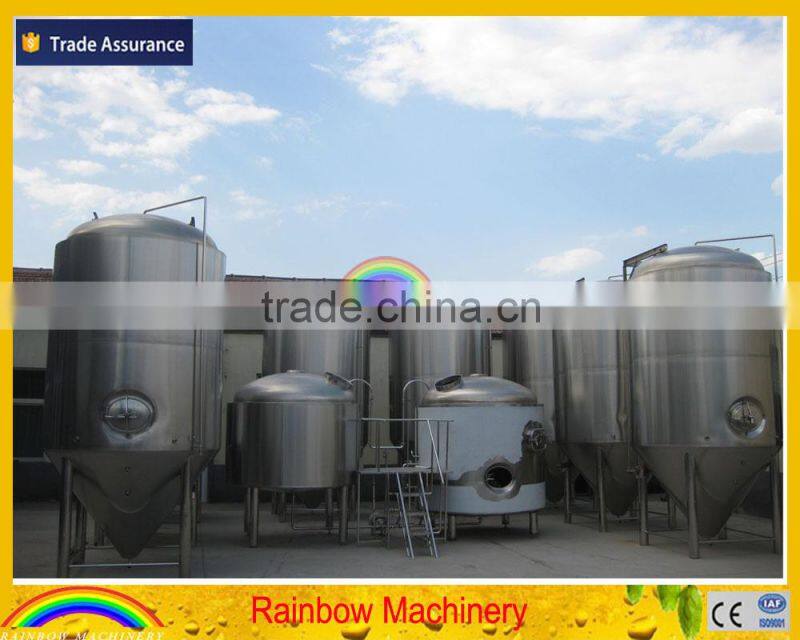

Fermenting Equipment for Micro Beer Brewing System 5BBL,10BBL 15BBL 20BBL 50BBL 100BBL

Fermenting Equipment for micro beer brewing system 5BBL,10BBL 15BBL 20BBL 50BBL 100BBL

The complete beer brewing system mainly includes:milling system, brewhouse system, fermentation system,

cooling system, CIP washing system, filter system, PLC/semi-auto controlling system

--And all the necessary spare parts.

The brewhouse system includes 3 tanks:mash tun/lautering tun, brew kettle/whirlpool, hot liquid tank in different combinations according to customers' demands.

Optional: 1-mash/brew kettle, lauter tun/whirlpool

       2-mash tun, lauter tun, brew kettle/whirlpool

       3-mash tun, lauter tun, brew kettle, whirlpool

Heating source:  steam jacket heating brewhouse, electric or direct fire

Material: stainless steel 304 or copper

Warranty period: 36 months for main equipment

Main features of the brewhouse system

Brewhouse System

1)--Mash/Lauter tun installed mash agitator,

Installed rakers and false buttom for grains separation

--Usage:Mashing, mixing-stainless steel mixer driven by frequency convertor,

lautering-eparation of mash grains from wort during wort producing process.

2)--Brew/whirlpool tun, wort boiling and make wort whirlpooling

-Usage: wort boiling and whirlpooling

-Wort Whirlpool-sanitary centrifugal mash pump activate the whirlpooling.

-Heating: electricity gas fired or stream

3)--Hot water tank-water heating and hot water storing/preparation

connected to the controller for automatic temperature controlling

1-Top domed lighted sight glass

2-Top domed manway door/glass manway door

3-PT100, connected to the controller for automatic temperature controlling

4-Sanitary centrifugal mash pump

5-wort pump:food grade sanitary and high efficiency wort pump

6-wort cooling: Two stages or single stage Plate heat exchanger

7-Flow sight glass

8-360°spray ball cleaning with high efficiency

9-spray CIP balls(X2)

10-Top dome wort/water inlet

11-Bottom mash inlet/outlet

12-Outlet/drainage connection DN40

13-Inlet connection DN32

14-All necessary pipings, pipes and fittings

Fermenting System-Glycol cooling jacket beer fermenting tanks

-Usage: fermentation, maturation and storage

1-Top domed with conical bottom

2-Material: SUS 304, inner thickness 3mm, outer thickness1.5mm, Insulation: PU100mm

3-Top manway

4-Cone bottom, 60 degree

5-Pressure gauge

6-Safety/vacuum valve

7-Working pressure: 0.15Mpa

8-Testing pressure: 0.3Mpa

9-Cooling jackets on both cylinder and cone

10-Inside 360 rotating CIP ball

11. Rotating Racking arm

12-Thermowell, 8mm

13-Temperature sensor, Model: PT100

14-Wort piping and butterfly valves, ø32mm

15-Drainage piping and butterfly valve, ø38mm

16-3 legs with adjustable bolts

-carbonation stone (optional)

- dry hops port (optional)

 The specification of bright beer tank

1)Design pressure 45psi(3bar); working pressure 15psi(1bar)
2)-Inner wall stainless steel 304, 3mm; -surface wall stainless steel 304, 2mm
3)-Insulation: polyurethane 100mm, dimple plate jacket, on side and bottom
4)-Top manway or side manway door
5)-Carbonation system with micron stone
6)-Solenoid valve, pressure relief valve(safe valve),Pressure gauge
7)-Temperature sensor well
8)-CIP arm and 360 degree rotationg cleaning ball
