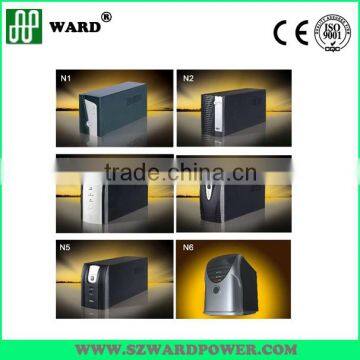

mini ups offline ups power supply ups with 1 hour backup export to all over the world
- 5000 Unit / Units per Month
- Shenzhen Port
- T/T Credit Card
You May Like
-
industrial three phase online ups 10KVA to 200KVA 12v 20kva ups
-
IP 55,online outdoor ups prices in pakistan
-
CE certificated Pure sine wave output RM online 10 kva ups price in pakistan
-
3kva battery backup online outdoor ups power supply
-
10kva online ups single phase outdoor dry batteries for ups
-
Offline mini ups for elevators with PC ups AVR 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Product Details
Place of Origin | Guangdong, China | Brand Name | WARD | |
Model Number | N400 N500 N650 N800 N1000 N1200 N1500 | Phase | Single Phase | |
Protection | Other, Unbalanced Loads, short current | Weight | 4KG 4.5KG 5KG 8.4KG 9.4KG 9.4KG | |
Output Voltage | 220VAC/120VAC ±10% | Type | Other, offline | |
Application | Other, office ups |
Product Description
mini ups offline ups power supply ups with 1 hour backup export to all over the world
Applications:
The off line UPS is in standby status with batteries being charged in normal AC time.When the power supply unexpectedly shuts down, the built- in inverter will in no time convert the battery output into AC to keep stable power supply. The UPS is generally considered high rate, low noise while running and cost-effective , mostly used in comparably stable environment with a small fluctuation of utility power and lower requirement of power supply quality.
The UPS now is widely used in protection of PC in government offices, education institutes and SMEs
Main Features:
Offline UPS ,PC ups AVR setting mini pc/computer ups low battery alarm,LED status display Intelligent battery management
Speicification:
with AVR MODEL | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 | |||
Nominal Capacity | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | |||
Input | Voltage Range | 145~280VAC/ 80VAC-150VAC | ||||||||
Frequency | 50/60Hz | |||||||||
Output | Voltage Range | 220VAC/120VAC ±10% | ||||||||
Frequency | 50Hz/60Hz ±5% | |||||||||
Output Waveform | Sine Wave (AC Mode), Square Wave (Battery mode) | |||||||||
Transfer time | < 8ms | |||||||||
Battery | Type | Sealed free maintenance lead acid battery | ||||||||
Capacity | 12V,4AH *1PCS | 12V,7AH *1PCS | 12V,7AH *1PCS | 12V,9AH *1PCS | 12V,7AH *2PCS | 12V,9AH *2PCS | 12V,9AH *2PCS | |||
Recharge Time | 8 hrs to 90% of capacity full load discharge | |||||||||
Protection | Auto protect | |||||||||
Back-up time(at a PC load with 15"monitor) | 10 minutes | 18 minutes | 18 minutes | 22 minutes | 30 minutes | 35 minutes | 35 minutes | |||
Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload | |||||||||
DB-9 port, communication software | Optional RS232, RJ11, RJ45, USB | |||||||||
Protection | AC mode | Fuse | ||||||||
Short circuit | AC | Fuse | ||||||||
Invert mode | Auto protect | |||||||||
Alarm | Alarm | Battery discharge | Alarm beeps every four seconds | |||||||
Low battery voltage | Alarm beeps every second | |||||||||
Overload | Alarm beeps continuously | |||||||||
Indicator light | Auto adjust | Green lighting: AC mode | ||||||||
Battery Discharge | Red lighting: Battery mode | |||||||||
Environment | Operating temperature | 0°C~40°C | ||||||||
Operating Humidity | 0-90% non-condensing | |||||||||
Noise | <35dB (1 meter distance) | |||||||||
UPS Dimension(L×W×H)mm | 250*90*145 | 291*90*145 |
| 330*90*145 | 340x122x190 | |||||
Net weight (N.W) | 4KG | 4.5KG |
| 5KG | 8.4KG | 9.4KG | 9.4KG | |||
Gross weight (G.W) | 4.3KG | 4.8KG |
| 5.3KG | 8.7KG | 9.7KG | 9.7KG | |||
Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package
Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
1. Respond as Soon as Possible
2. Keep Clients Updated
3. Go the Extra Mile
4. Fix Your Mistakes
5.24 hours online
6. Keep Promises
7. Don’t Confuse Clients with Jargon
8. Be Patient
9. Know Everything we Need to Know
Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.
Q2. How's the delivery time ?
A. Usually it will take about 15~20 days for production
Q3. Tell me the standard package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.
Q4. What kind of material of transformer?
A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.
Q5. Would you accept our logo ?
A.If you have reached the minimum quantity, absolutely no problem to do OEM.
Q6. We want to know your monthly capacity.
A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.
Q7. Where is your market?
A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.
Q8. Does the inverter connect with solar system ?
A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..
