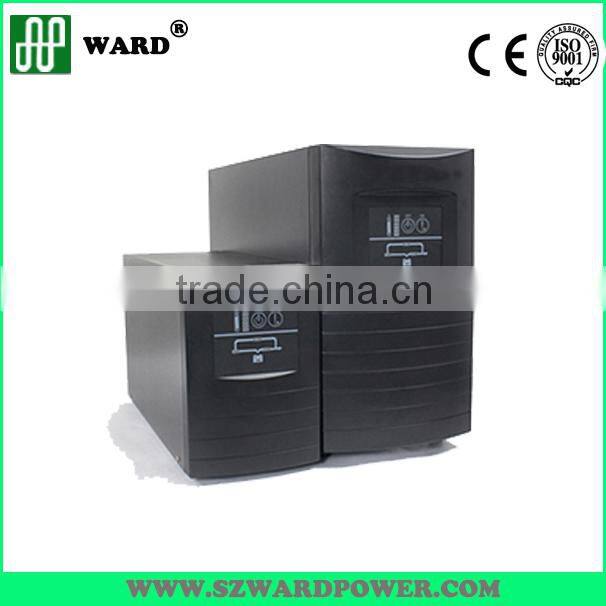

high frequency online 2kw ups

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	WARD
Model Number	T/EX 1-3KVA UPS	Phase	Other, Single Phase, Single phase
Protection	Other, over charge,short circuit, over voltage	Weight	14-32KG
Output Voltage	110V,220V,230V,240V	Type	On-line
Application	Other, telecom,bank,hospital,bureau,traffic, hospital bureau telecom

Product Description

frequency online 2kw ups

Product Description

Application:

T/EX series1KVA-3KVA high frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital bureau, traffic, traffic, public security, ATM and so on.

Main Features:

1. Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.

2. Set Output voltage, Frequency parameter and bypass function on the display.

3. Advanced MCU microprocessor control technology, ensure long life reliability.

4. Wide input voltage range, Zero transfer time.

5. Excellent Protection against over voltage, over load, over current, over charge and so on.

6. Input L and N lines reverse wiring detection, Auto start when AC back.

7. DC start function, Input PFC revise function.

8. Humanization bypass output can be adjustable.

9. Smart RS232 communication with monitoring software.

10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.

11. Strong antijamming capability.

12. Available to work with generators.

13. Lightning, surge, short circuit, Network/fax/modem surge protection.

14. Corresponding plug and sockets to different countries.

Technical specifications for high frequency online UPS EX1K-EX3K:

Online UPS MODEL		T1K/EX1K	T2K/EX2K	T3K/EX3K	T1KL/EX1KL	T2KL/EX2KL	T3KL/EX3KL
CAPACITY	VA/W	1000VA/800W	2000VA/1600W	3000VA/2400W	1000VA/800W	2000VA/1600W	3000VA/2400W
INPUT	Nominal Voltage	110/115/120VAC or 220/230/240VAC
	Voltage Range	60~138VAC or 115~300VAC
	Frequency Range	50Hz: 46~54Hz; 60Hz: 56~64Hz
	Phase	Single phase with Ground
	Power Factor	>=0.97
OUTPUT	Voltage	110/115/120(1±2%)VAC or 220/230/240(1±2%)VAC
	Frequency	50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%)
	Wave Form	Pure Sine Wave
	Power Factor	0.7
	Harmonic Distortion	<3% THD (Linear Load), <7% THD (Non-Linear Load)
	Overload Capacity	110%~150% maintain 30s then turn to bypass output, over 150% maintain 200ms
	Current Crest Ratio	3:1
	Connections	IEC320*4	IEC320*6	IEC320*3 & Terminal block	IEC320*4	IEC320*6	IEC320*3 & Terminal block
Efficiency	To AC Mode	85%
Efficiency	To Battery Mode	83%
Battery	Type	Sealed free maintenance lead acid battery
	Nominal DC voltage	Built in batteries 12v7.2ah			36VDC	96VDC	96VDC
	Quantity	3pcs	8pcs	8pcs	Depends on requested back-up time
	Back-up Time (Full load)	>=7 minutes	>=8 minutes	>=6 minutes	Depends on the capacity of external battery bank
	Recharge Time	5hours to 90% of capacity full discharge			Depends on the capacity of external battery bank
	Charge current(MAX)	1.0A	1.0A	1.0A	7A	8A	8A
	Charge voltage	41.1Vdc ± 0.6V	110Vdc ± 0.4V		41.1Vdc ± 0.6V	110Vdc ± 0.4V
Bypass	Automatic Transfer	On overload and UPS failure
Bypass	Before UPS Power-on	Default "NO" user adjustable to "YES"
Transfer Time		0ms, less than 4ms from inverter to bypass and vice versa
Indicators	LCD Display	UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Acoustic noise	At 1 meter distance	<45dB	<50dB	<50dB	<45dB	<50dB	<50dB
Communications	Intelligent RS232 serial port	Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX and MAC
	SNMP (Optional)	Remote control UPS through SNMP management and Internet
	USB (Optional)	Windows family software and Mac OS
Network Surge Protection		RJ45 I/O port available for network or FAX/Telephone line/Modem
Environmental	Operating Temperature	0~40 °C
Environmental	Operating Humidity	20~90% ( Non Condensing)
Weight	Net weight (kg)	14	31.5	32	7	13.5	14
UPS Dimension	LWH (mm)	400145220	460192348	460192348	400145220	460192348	460192348

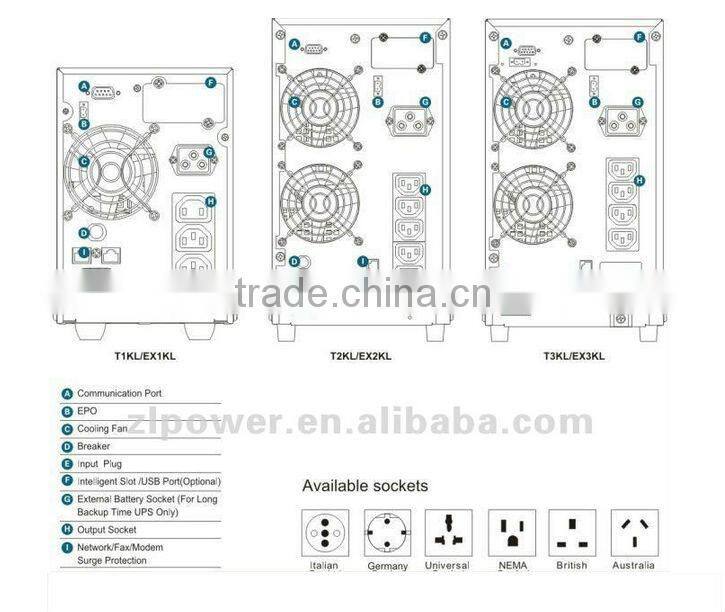

Plugs

Our Services

1. Respond as Soon as Possible

2. Keep Clients Updated

3. Go the Extra Mile

4. Fix Your Mistakes

5.24 hours online

6. Keep Promises

7. Don’t Confuse Clients with Jargon

8. Be Patient

9. Know Everything we Need to Know

FAQ

Q1. What's the payment term?

A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.

Q2. How's the delivery time ?

A. Usually it will take about 15~20 days for production

Q3. Tell me the standard package?

A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.

Q4. What kind of material of transformer?

A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.

Q5. Would you accept our logo ?

A.If you have reached the minimum quantity, absolutely no problem to do OEM.

Q6. We want to know your monthly capacity.

A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.

Q7. Where is your market?

A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.

Q8. Does the inverter connect with solar system ?

A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..

Factory Show

Packaging & Shipping

Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package

Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
