1kw/1.5kw/2kw/3kw/4kw/5kw/6kw dc ac Power Pure Sine Wave Inverter, off Grid Solar Inverter 12V/24V to 110V/220V

FOB Price

US$ 150 - 450 / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	WARD, Ward power inverter
Model Number	APP1000W-6000W	Output Power	Other, 1000W-6000W
Output Type	Other, Dual, Dual	Size	382218179mm 442218179mm 598218179mm
Weight	16KG--45KG	Input Voltage	120VAC/230VAC, 120VAC/230VAC,12VDC
Output Voltage	120VAC/230VAC	Type	DC/AC Inverters
Output Frequency	50HZ/60HZ	Output Current	15A-100A

Product Description

dc ac power pure sine wave inverter, off grid solar inverter 12V/24V to 110V/220V1000W/1500W/2000W/3000W/4000W/5000W/6000W

Product Description

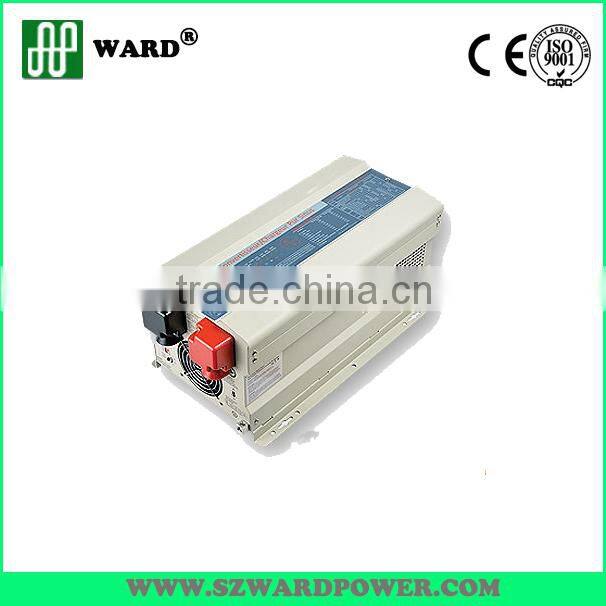

APP Series Pure Sine Wave Inverter&Charger

APP Series Pure Sine Wave Inverter is a combination of an inverter, battery charger and AC auto-transfer
switch into one complete system with a peak conversion efficiency of 92%.
It is packed with unique features and it is one of the most advanced inverter/chargers in the market today.
It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with
unprecedentedly high surge capability to meet demanding power needs of inductive loads without
endangering the equipment.

Feature of APP Series Inverter&Charger

High High overload ability up to 300% of rated power(20 sec)
Low quiescent current, low power “ Power Saving Mode ” to conserve energy
4-step intelligent battery charging, PFC(Power Factor Correction) for charger
8 pre set battery type selector plus de-sulphation for totally flat batteries
Powerful charge rate up to 110Amp, selectable from 0%-100%
10 ms typical transfer time between battery and AC, guarantees power continuity
Smart remote control
15s delay before transfer when AC resumes, extra protection for loads when used with generator
Allows start up and through power with depleted batteries
30A/40A through current ability
Multiple controlled cooling fan
Extensive protections against various harsh situations
13VDC battery recover point, dedicated for renewable energy systems

Specifications

Electrical Specifications
	Model	APP 1000W	APP 1500W	APP 2000W	APP 3000W	APP 4000W	APP 5000W	APP 6000W
Inverter Output	Continuous Output Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W
	Surge Rating(20s)	3000W	4500W	6000W	9000W	12000W	15000W	18000W
	Capable of Starting Electric Motor	1HP	1.5HP	2HP	3HP	4HP	5HP	6HP
	Output Waveform	Pure Sine wave/Same as input(Bypass mode)
	Nominal Efficiency	>88%(Peak)
	Line Mode Efficiency	>95%
	Power Factor	0.9-1.0
	Nominal Output Voltage rms	100-110-120Vac / 220-230-240Vac
	Output Voltage Regulation	±10% RMS
	Output Frequency	50/60Hz ± 0.3Hz
	Short Circuit Protection	Yes, Current Limit Function (Fault after 1sec)
	Typical transfer Time	10ms(Max)
	THD	< 10%
DC Input	Nominal Input Voltage	12.0Vdc
		( 2 for 24Vdc, 4 for 48Vdc)
	Minimum Start Voltage	10.0Vdc
	Low Battery Alarm	10.5Vdc / 11.0Vdc
	Low Battery Trip	10.0Vdc / 10.5Vdc
	High Voltage Alarm & Fault	16.0Vdc
	High DC Input Recovery	15.5Vdc
	Low Battery voltage recover	13.0Vdc
	Idle Consumption-Search Mode	< 25 W when Power Saver On
Charge	Input Voltage Range	Wide: 90~135VAC / 164~243VAC; Narraw: 100~135VAC / 194~243VAC;
	Output Voltage	Depends on battery type
	Charger Breaker Rating	10A	10A	10A	20A	20A	30A	30A
	Max Charge Rate	35A / 70-90A Max (Charger Current Control)
	Over Charge Protection Shutdown	15.7V for 12Vdc ( 2 for 24Vdc, 4 for 48Vdc)
	Charger curve(4 stage constant current) 4 step digital controlled progressive charge	Battery types ( 2 for 24Vdc, 4 for 48Vdc)
	Battery type	Fast Vdc				Float Vdc
	Gel U.S.A	14.0				13.7
	A.G.M 1	14.1				13.4
	A.G.M 2	14.6				13.7
	Sealed Lead Acid	14.4				13.6
	Gel Euro	14.4				13.8
	Open Lead Acid	14.8				13.3
	Calcium	15.1				13.6
	De-sulphation	15.5 for 4hrs
	Remote Control	Yes. Optional
Bypass & Protection	Input Voltage Waveform	Sine wave (Grid or Generator)
	Nominal Voltage	120Vac				230Vac
	Low Voltage Trip	80V/90V±4%				184V/154V±4%
	Low Voltage re engage	90V/100V±4%				194V/164V±4%
	High Voltage Trip	140V±4%				253V±4%
	High Voltage re engage	135V±4%				243V±4%
	Max Input AC Voltage	150VAC				270VAC
	Nominal Input Frequency	50Hz or 60Hz (Auto detect)
	Low Freq Trip	47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
	Low Freq re engage	48±0.3Hz for 50Hz, 58±0.3Hz for 60Hz
	High Freq Trip	55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
	High Freq re engage	54±0.3Hz for 50Hz, 64±0.3Hz for 60Hz
	Output Short circuit protection	Circuit breaker
	Bypass breaker rating	10A	15A	20A	30A	30A	40A	40A
	Transfer switch rating	30amp for UL & TUV				40amp for UL
	Max bypass current	30amp				40amp
Mechanical Specification	Mounting	Wall mount
	Inverter Dimensions(LWH)	382218179mm		442218179mm		598218179mm
	Inverter Weight	16KG	17KG	20KG	24KG	35KG	45KG	45KG
	Shipping Dimensions(LWH)	520315300mm		580315300mm		740315300mm
	Shipping Weight	18KG	19KG	22KG	26KG	37KG	47KG	47KG

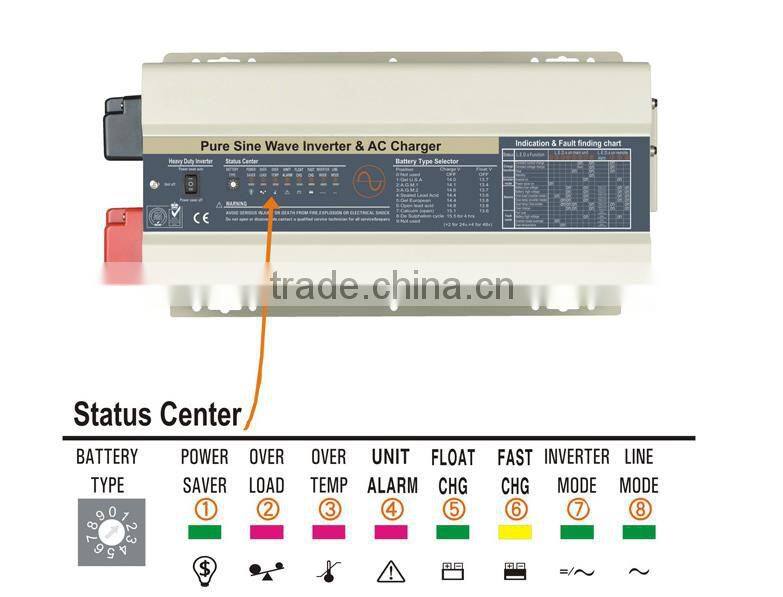

	Display	Status LEDs / Status LEDs+LCD
	Standard Warranty	1 Year

Plugs

Our Services

1. Respond as Soon as Possible

2. Keep Clients Updated

3. Go the Extra Mile

4. Fix Your Mistakes

5.24 hours online

6. Keep Promises

7. Don’t Confuse Clients with Jargon

8. Be Patient

9. Know Everything we Need to Know

FAQ

Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.
Q2. How's the delivery time ?
A. Usually it will take about 15~20 days for production
Q3. Tell me the standard package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.
Q4. What kind of material of transformer?
A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.
Q5. Would you accept our logo ?
A.If you have reached the minimum quantity, absolutely no problem to do OEM.
Q6. We want to know your monthly capacity.
A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.
Q7. Where is your market?
A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.
Q8. Does the inverter connect with solar system ?
A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..

Factory Show

Packaging & Shipping

Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package

Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
