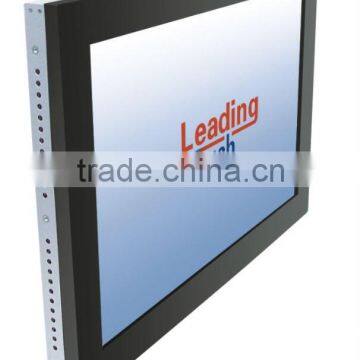

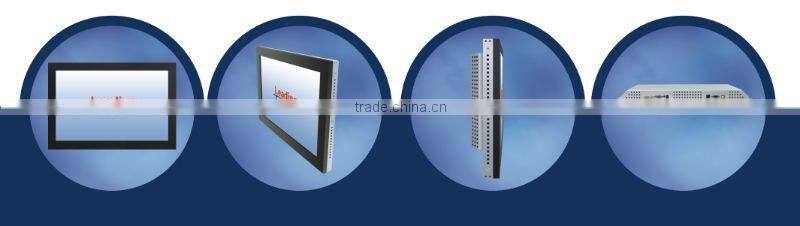

Leadingtouch 22" Open Frame Touch Monitor for Kiosks TM-2258

Model

TM-2258

Description

22″wide screen TFT Rear Mount Touchmonitor

Case/Bezel Color

Plastic / Black

Display

16:10 Ratio Active matrix TFT LCD

Optimal(native) resolution

1680 x 1050 @ 60Hz

Sychronization Range

72.1 KHz horizontal, 60 Hz vertical

Useful screen area

300.1mm x 477.7mm

Colors

16.7 million

Brightness

LCD panel: 300cd/m2 (typical)

With IR touchscreen: 280 cd/m2 (typical)

Pixel Pitch

0.282 x 0.282 mm

Response Time

5 msec (typical)

Contrast ratio

1000:1 typical

Viewing angle(typical, from center)

Horizontal (left/right): 170°(85° /85° )

Vertical (up/down): 160°(80° /80° )

Backlight Lamp life

50,000 Hrs to 1/2 brightness

Input video format

Analog (VGA) and DVI

Input video signal connector

Analog (VGA) and DVI

On Screen Display(OSD)

Remote OSD with 1.2m Cable

Touch Technology

Multitouch IR Infrared Touch Panel

Touch Interface

Combo 10ms 232 and USB interface

Touch Resistive Time

10ms

Mounting Options

Rear Fixed, 100mm VESA mount

Power supply

External:100-240V AC, 50-60 Hz

Power Consumption

31W Typical

Temperature Range

Operating:0ºC-50ºC, Storage:-20ºC-60ºC

Humidity Range

Operating:8%-90%, Storage 5%-90%

Touchmonitor Dimension

530 x 352 x 73(mm)

Shipping Carton Dimension

630x 452 x 190(mm)

Weight(approx.)

Monitor:7kg / shipping: 10kg

Warranty

Monitor: 3 years/’; LCD Panel: 1 year

Agency Approvals

FCC, CE, RoHS compliant
