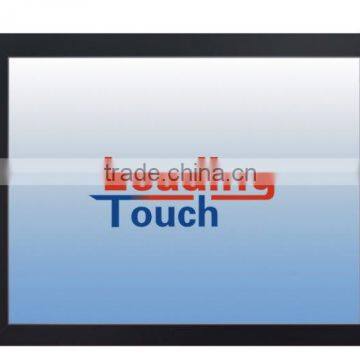

Open Frame Touch Monitor for Kiosks 15,17,19,22 inch

Model

TM-1728

Description

17″TFT Rear Mount Touchmonitor

Case/Bezel Color

Black

Display

4:3 Ratio Active matrix TFT LCD

Optimal(native) resolution

1280X1024@60Hz

Sychronization Range

Horizontal:30-80 kHz; Vertical: 60-75Hz

Useful screen area

Horizontal: 13.3" (338 mm);Vertical: 10.6" (270.3 mm)

Colors

16.7 million

Brightness

LCD panel: 300cd/m2 (typical)

with touchscreen: 230 cd/m2 (typical)

With Leadingtouch Infrared touchscreen: 280 cd/m2 (typical)

Pixel Pitch

0.264 x 0.264 mm

Response Time

8 msec (typical)

Contrast ratio

500:1 typical

Viewing angle(typical, from center)

Horizontal (left/right): 140°(70° /70° )

Vertical (up/down): 130°(70° /60° )

Backlight Lamp life

50,000 Hrs to 1/2 brightness

Input video format

VGA or DVI optional

Input video signal connector

Mini D-Sub 15-Pin VGA type

On Screen Display(OSD)

Remote OSD with 1.2m cable

Touch Technology

SAW(Resistive, Capacitive Optional)

Touch Interface

Combo 10ms232 and USB interface

Touch Resistive Time

10ms

Mounting Options

Rear Fixed, 75 mm & 100mm VESA mount

Power supply

External:100-240V AC, 50-60 Hz

Power Consumption

50W max

Temperature Range

Operating: 0°C to 50°C; Storage: -20°C to 60°C

Humidity Range

Operating: 10%-90%; Storage: 5%-90% no condensing

Touchmonitor Dimension

368x 306 x 48(mm)

Shipping Carton Dimension

460x 409 x 175(mm)

Weight(approx.)

Monitor: 3.8kg / shipping: 6kg

Warranty

Monitor: 3 years/’; LCD Panel: 1 year

Agency Approvals

FCC, CE, CCC,RoHS compliant
