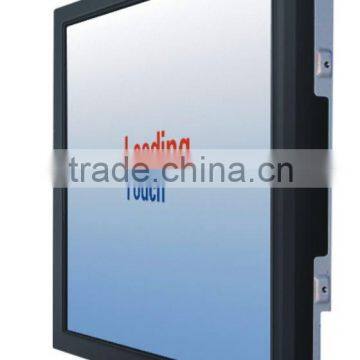

Leadingtouch 15"/17"/19"/22" 5-Wire Resistive Touch Monitor

Model

TM-1545

Description

15” TFT Desktop Touchmonitor

Case/Bezel Color

Black

Display

4:3 Ratio Active matrix TFT LCD

Optimal(native) resolution

1024X768@60Hz

Sychronization Range

Horizontal:30-80 kHz; Vertical: 56.3-75Hz

Useful screen area

Horizontal: 11.93" (303 mm);Vertical: 8.96" (227.6 mm)

Colors

16.7 million

Brightness

LCD panel: 250 cd/m2 (typical)
with touchscreen: 230 cd/m2 (typical)

With touchscreen: 230 cd/m2 (typical)

Pixel Pitch

0.297 x 0.297 mm

Response Time

16 msec (typical)

Contrast ratio

450:1 typical

Viewing angle(typical, from center)

Horizontal (left/right): 120°(60° /60° )

Vertical (up/down): 100°(50° /50° )

Backlight Lamp life

50,000 Hrs to 1/2 brightness

Input video format

VGA or DVI optional

Input video signal connector

Mini D-Sub 15-Pin VGA type

On Screen Display(OSD)

Multilingual OSD

Touch Technology

5 Wire Resistive Touch

Touch Interface

Combo USB and Serial(232) interface

Touch Resistive Time

16ms

Mounting Options

Rear Fixed, 75 mm VESA mount, removable tilt base

Power supply

External:100-240V AC, 50-60 Hz

Power Consumption

50W max

Temperature Range

Operating: 0°C to 50°C; Storage: -20°C to 60°C

Humidity Range

Operating: 20%-85%; Storage: 10%-95%

Touchmonitor Dimension

336.4 x 2644 x 44.5(mm)

Shipping Carton Dimension

410 x 360 x 165(mm)

Weight(approx.)

Monitor: 4.8kg / shipping: 7kg

Warranty

Monitor: 3 years’; LCD Panel: 1 year

Agency Approvals

FCC, CE, RoHS compliant
