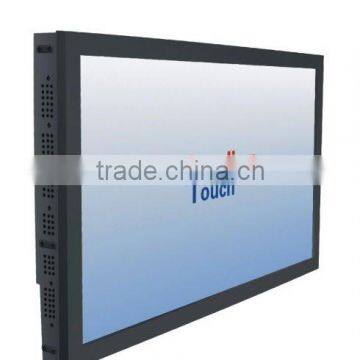

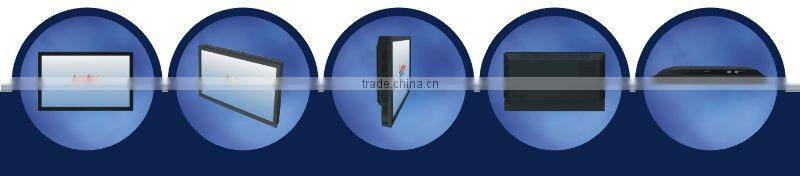

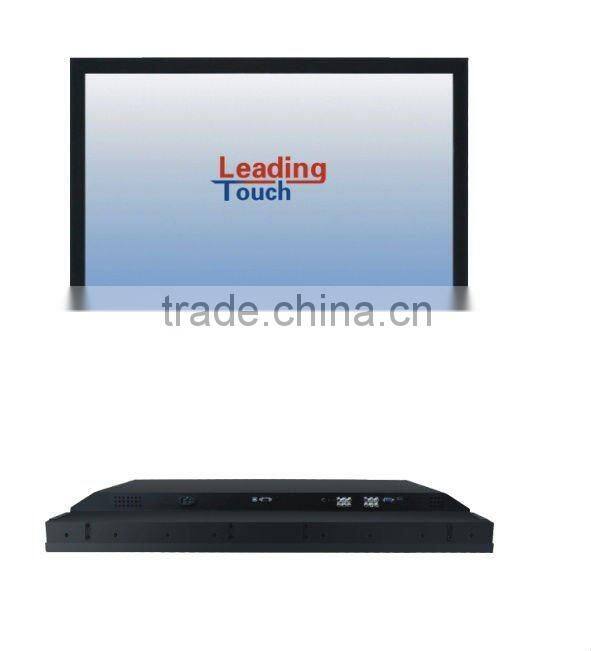

LeadingTouch 42" Multitouch Open Frame Touch Monitor TM-4258

Model

TM-4258

Description

42” TFT Open Frame TouchMonitor

Case/Bezel Colour

Black

Touchmonitor Performance

Standard

Display Type

16:9 Ratio42” Active Matrix TFT LCD

Active Display Area

930*523mm

Native Resolution

1920 x 1080 @ 60Hz

Sychronization Range

135 KHz horizontal, 120 Hz Vertical

Pixel Response Time Rise + Fall (Typically)

8 m s

Plug and Play

VESA DDC 1/2B

On Screen Display (OSD)

Remote OSD with 1.2m Cable

Colours

10bit(D) , 1.06Billon colors

Brightness (From Centre, CR>=5)

550 cd/m²

Contrast Ratio Typically

1100:1

Viewing Angle Horizontal (left/right)

180º(90º/90º)

Viewing Angle Vertical (up/down)

180º(90º/90º)

Backlight Lamp life

50000 Hrs to ½ brightness

Input Video Format

Analog (VGA) and DVI

Touch Technology

Infrared

Touchscreen Interface

Serial (RS232) or USB

Touch Response Time Serial/USB

10.4ms

Touch Sensitivity

Fixed

Monitor Dimensions

1007*600*117mm

Carton Dimensions

1135*855*315mm

Weight (approximately)

40.5kg(net)/45kg(shipping)

Mounting Options

Rear Mount, VESA 75 & 100mm, Included

Power Supply

External: 100-240V, 50-60 Hz

Power Consumption

160 Watts Typical

Temperature Range

Operating:0ºC-50ºC, Storage:-20ºC-60ºC

Relative Humidity

Operating:10%-90%, Storage 10%-90% Non Condensing

Warranty*

1 years

Agency Approvals

RoHS, CE, FCC
