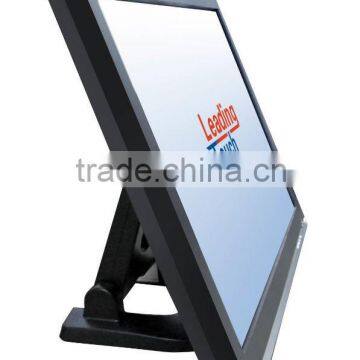

LeadingTouch 22" Desktop 5 Wire Resistive Touch Screen Lcd Touch Monitor TM-2205

Model

TM-2205

Description

22″TFT Desktop Touchmonitor

Case/Bezel Color

Black

Display

16:10 Ratio 22”Active matrix TFT LCD

Optimal(native) resolution

1680 x 1050 @ 60Hz

Sychronization Range

72.1 KHz horizontal, 60 Hz Vertical

Useful screen area

Horizontal: 18.8"( 477.7mm);Vertical: 11.81" (300.1mm)

Colors

16.7 million

Brightness

LCD panel: 300 cd/m2 (typical)

with touchscreen: 230 cd/m2 (typical)

With 5wire resistive  touchscreen: 280 cd/m2 (typical)

Pixel Pitch

0.511 x 0.511 mm

Response Time

5 msec (typical)

Contrast ratio

1000:1 typical

Viewing angle(typical, from center)

Horizontal (left/right): 170°(85° /85° )

Vertical (up/down): 160°(80° /80° )

Backlight Lamp life

50,000 Hrs to 1/2 brightness

Input video format

VGA or DVI optional

Input video signal connector

VESA DDC 1/28

On Screen Display(OSD)

Remote OSD with 1.2m cable

Touch Technology

5wire resistive

Touch Interface

Combo serial (RS232) and USB interface

Touch Resistive Time

15ms

Mounting Options

Rear Fixed, 75 mm & 100mm VESA mount

Power supply

Type: External AC to DC power brick

Monitor input: +12VDC ±5%, 3.2 A typical, 3.8 A max.

AC to DC power brick input: 100-240 VAC, 50/60 Hz

Power Consumption

31W Typical

Temperature Range

Operating: 0°C to 50°C; Storage: -20°C to 60°C

Humidity Range

Operating: 10%-90%; Storage: 5%-90%, Non condensing

Touchmonitor Dimension

With base: 527X340X65mm

Without base: 527X430X220mm

Warranty

Monitor: 3 years/’; LCD Panel: 1 year

Agency Approvals

FCC, CE, RoHS compliant
