Home > Products > Gas Regulators > Natural Gas Pressure Regulaor Valve
Natural Gas Pressure Regulaor Valve
- Ningbo Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Regulating | |
| Pressure | Low Pressure | Power | Pneumatic | |
| Material | Other, Die-cast aluminium | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | DN32,DN40,DN50 | |
| Place of Origin | Zhejiang, China | Model Number | FRG/2MC,RG/2MC | |
| Brand Name | WASSERMANN |
Product Description

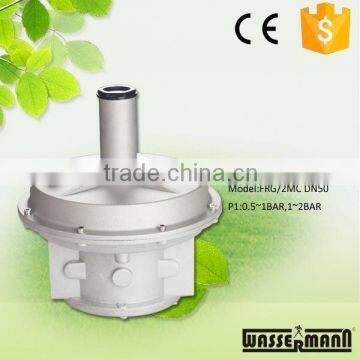

Natural Gas Pressure Regulaor Valve
Model : FRG/2MC,RG/2MC
Gas pressure closing regulator (RG/2MT) or filter regulator (FRG/2MT) .
EC certified according to EN 88-1
In conformity with the 2009/142/EC Directive (Gas Directive)
TECHNICAL DATA
• Use: not aggressive gases of the 3 families (dry gases)
• Threaded connections Rp: (DN 15 ÷ DN 50) according to EN 10226
• Max. working pressure: 0,5 ÷ 1 bar, 1 ÷ 2 bar (see product label)
• Environment temperature: -15 ÷ +60 °C
• Max superficial temperature: 60 °C
• P2 accuracy class (AC): 10
• Closing pressure class (SG) : 30
• Mechanical strength: Group 2 (according to EN 13611:2007)
• Filtration: 50 μm (on request other filtration qualities)
• Filtration class: G 2 (according to EN 779)
MATERIALS
• Die-cast aluminium (UNI EN 1706)
• OT-58 brass (UNI EN 12164)
• 11S aluminium (UNI 9002-5)
• Nylon 30% glass fibre (UNI EN ISO 11667)
• NBR rubber (UNI 7702)
• Viledon

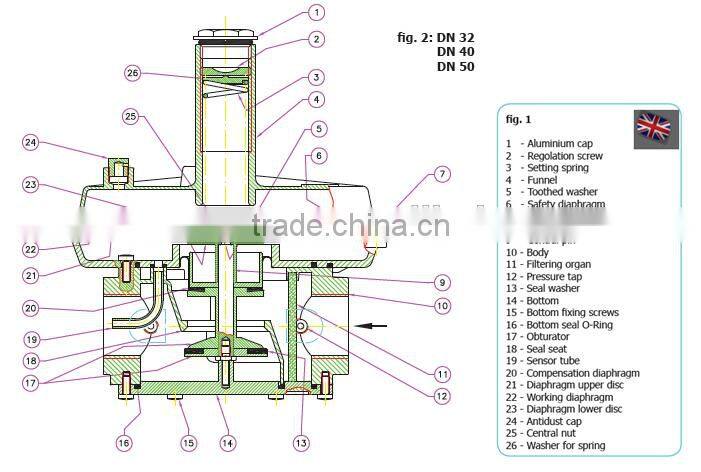

SPARE PART LIST

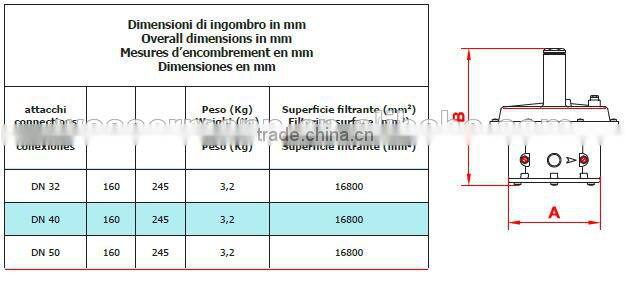

DIMENSIONS

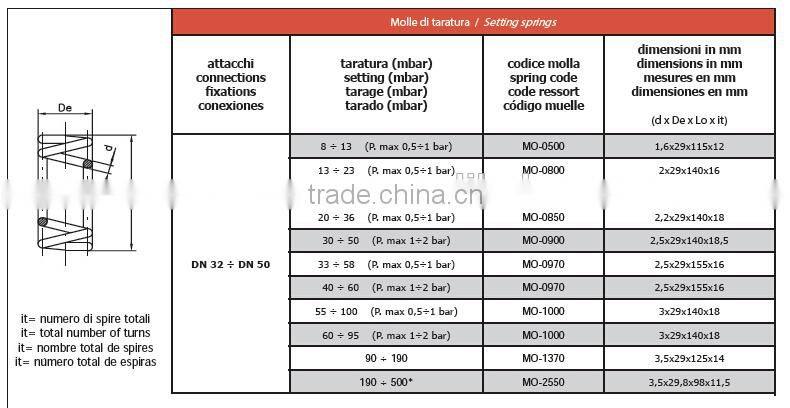

SPRING DATA

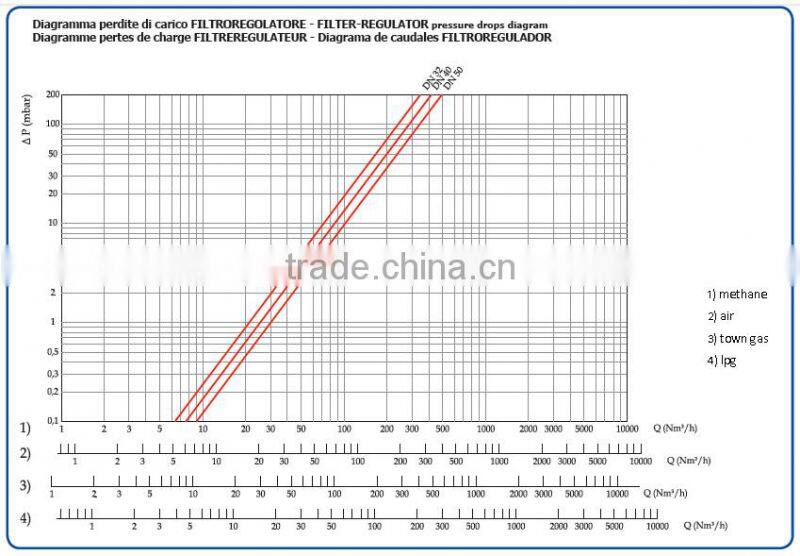

PRESSURE DROPS DIAGRAM
EXAMPLE OF INSTALLATION
2PCS ONE CARTON
WASSERMANN is a distributor of climate and sanitary hot water solutions and services, operating in a market more than 10 years. It is a company always focuses on customer needs,thus, we offer integrated systems instead of just single products. Our basic product assortment combines the following fields:
. Wall Hung Gas Boilers
. Hot Water Circulating Pumps
. Gas Boiler Circulating Pumps
. Gas Pressure Regulators
. Gas Relief Valves and Gas Filters
. Gas Solenoid Valves and Gas Detectors
. Hot Water Pressure Tanks
. Gas Boiler Expansion Tanks
. Manifolds
. Brass Ball Valves & Fittings
. Mixing Valves, Thermostatic Valves and Diverting Valves
. Air Vent Valves & Safty Valves
. Thermostats
. Manometers
. PTFE Tapes
. Voltage Stabilizers
. Plate Heat Exchangers
. Water Pre-Filters and Water Filters
. Aluminum Plastic Pipes
. Aluminum Radiators
The same time, WASSERMANN is a company that is committed to study, to develop, to manufacture and to industrialize pumping systems.We have been operating in the electric pump industry for more than twenty years.
